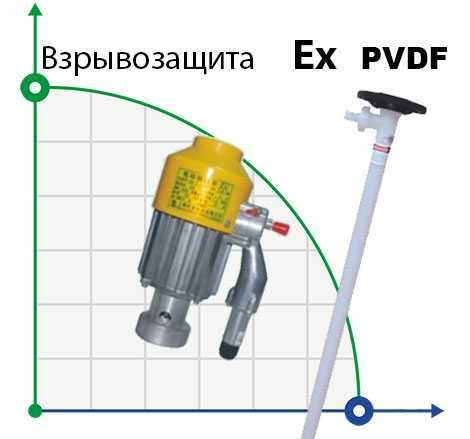

Drum pump BTS-HD-EX2-V+PVDF-700mm

Code: 1000015038
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour6
Feed height, m12
MaterialPVDF
Input pipe diameter41
Output pipe diameter25
Rate of turn, rpm12 000
Power supply1х220 V, 50 Hz
Explosion protectionYes
Max.temperature, C100
Material of flow channelPVDF
Max. head, m12
Max.viscosity, cPs50
Flow rate, l/min100
ModelBTS
Power capacity, Wt880
Height, mm700
Length, mm700
Shaft materialHastelloy
Country of OriginChina
PumpTypedrum
Drive Typeelectric
Type of configurationwith engine
Availability of spare partsyes
Warranty, months12
Applicationbarrels, eurocube, CIP-washing, solvents, hardeners, petroleum products, alkalis, nitric acid, acid, acetic acid, chemistry, pigments, flavorings, enzymes, oils, fuel, chemically active liquids, hydrofluoric acid, of hydrochloric acid, food additives, food, molasses, thickeners
Analogue forFLUIMAC, DAYTON, Debem, JESSBERGER, Lutz
Show all features (27)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1,690.42 (netto)
Добавить в сравнение
We deliver anywhere in the world
Drum pumps designated for transferring of various liquids from the cans, tanks and IBC containers. Drum pumps are made of different materials, e.g. stainless steel, Aluminum, PVC (poly vinyl chloride), Polypropylene and others. The delivery of acids, alkalis and reagents in drums and IBC (intermediate bulk containers) became the common practice. Specified tare oftentimes is for turn back and it means that the tare must be tipped out quickly and carefully and the returned to sender. As the containers with down discharge forbidden in many countries because of the liquid restriction danger, the only possibility of pumping the liquid became the using of housing on lid. The best equipment for this work is drum pumps. Drum pumps for chemically active liquids: sodium hydroxide, acetic acid, nitric acid, hydrofluoric acid and muriatic acid and others. Drum pumps transfer food supplements, feed products, molasses, deckers, atomizers, liquid products – concentrates and ingredients. In industry: pumping and loading of reagents and liquids from plastic tare, IBCs and drums. Drum pumps are widely used for transferring of petrochemicals, dissolvents, hardening agents and other components.
ProducerBTS Engineering
Pump capacity, cu.m/hour6
Feed height, m12
MaterialPVDF
Input pipe diameter41
Output pipe diameter25
Rate of turn, rpm12 000
Power supply1х220 V, 50 Hz
Explosion protectionYes
Max.temperature, C100
Material of flow channelPVDF
Max. head, m12
Max.viscosity, cPs50
Flow rate, l/min100
ModelBTS
Power capacity, Wt880
Height, mm700
Length, mm700
Shaft materialHastelloy
Country of OriginChina
PumpTypedrum
Drive Typeelectric
Type of configurationwith engine
Availability of spare partsyes
Warranty, months12
Applicationbarrels, eurocube, CIP-washing, solvents, hardeners, petroleum products, alkalis, nitric acid, acid, acetic acid, chemistry, pigments, flavorings, enzymes, oils, fuel, chemically active liquids, hydrofluoric acid, of hydrochloric acid, food additives, food, molasses, thickeners
Analogue forFLUIMAC, DAYTON, Debem, JESSBERGER, Lutz
