Diameter of pump | 4" (100 mm) |
Producer | Свердловинні насоси |
Pump capacity, cu.m/hour | 10.8 |
Feed height, m | 263 |
Power capacity, kW | 7,5 |
Material | AISI 304 stainless steel |
Output pipe diameter | 2" |
Rate of turn, rpm | 2 850 |
Power supply | 3х380 V, 50 Hz |
Packaging | delivered by two parts, packaging of the pump part: 204x11x13 cm, 13 kg; engine: 83x16x12cm, 29 kg |
Max.flow rate, m3/h | 10.8 |
Max. head, m | 263 |
Flow rate, l/min | 180 |
Cabel length,m | 2 |
Housing material | AISI 304 stainless steel |
Serial number of the pump | 4SD |
Country of Origin | China |
PumpType | borehole |
Drive Type | electric |
Gross weight, kg | 42 |
Length of transport packing, cm | 204 |
Width of transport packing, cm | 27 |
Height of transport packing, cm | 13 |
Diameter of pump | 4" (100 mm) |
Producer | Свердловинні насоси |
Pump capacity, cu.m/hour | 10.8 |
Feed height, m | 263 |
Power capacity, kW | 7,5 |
Material | AISI 304 stainless steel |
Output pipe diameter | 2" |
Rate of turn, rpm | 2 850 |
Power supply | 3х380 V, 50 Hz |
Packaging | delivered by two parts, packaging of the pump part: 204x11x13 cm, 13 kg; engine: 83x16x12cm, 29 kg |
Max.flow rate, m3/h | 10.8 |
Max. head, m | 263 |
Flow rate, l/min | 180 |
Cabel length,m | 2 |
Housing material | AISI 304 stainless steel |
Serial number of the pump | 4SD |
Country of Origin | China |
PumpType | borehole |
Drive Type | electric |
Gross weight, kg | 42 |
Length of transport packing, cm | 204 |
Width of transport packing, cm | 27 |
Height of transport packing, cm | 13 |

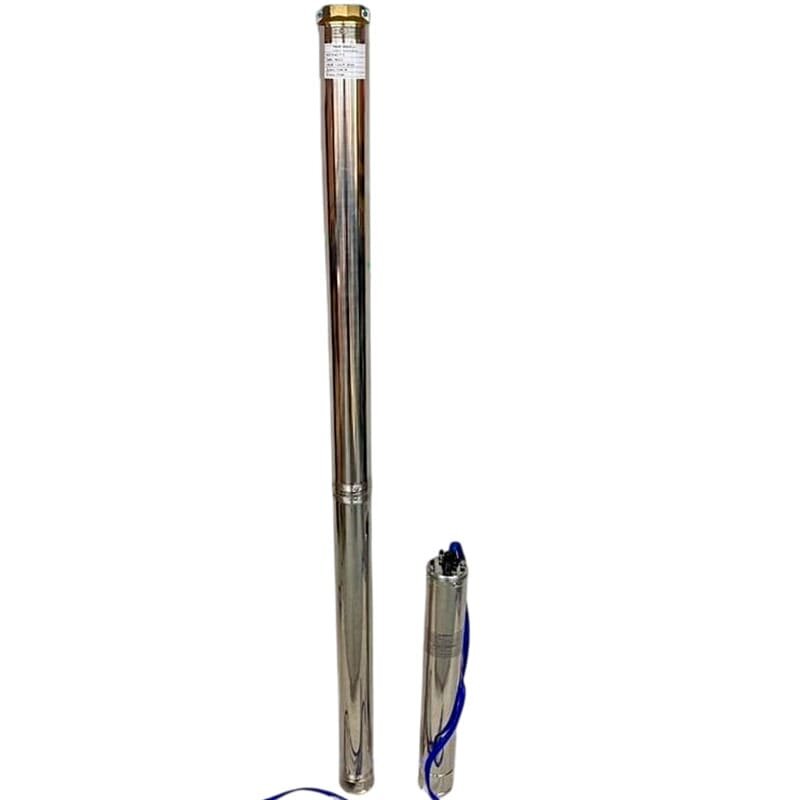

Download instructions, catalog for Deep Well Pump 4SD8/42, 7.5kW, 380V (replacement for ECV 6-6.5-200)
