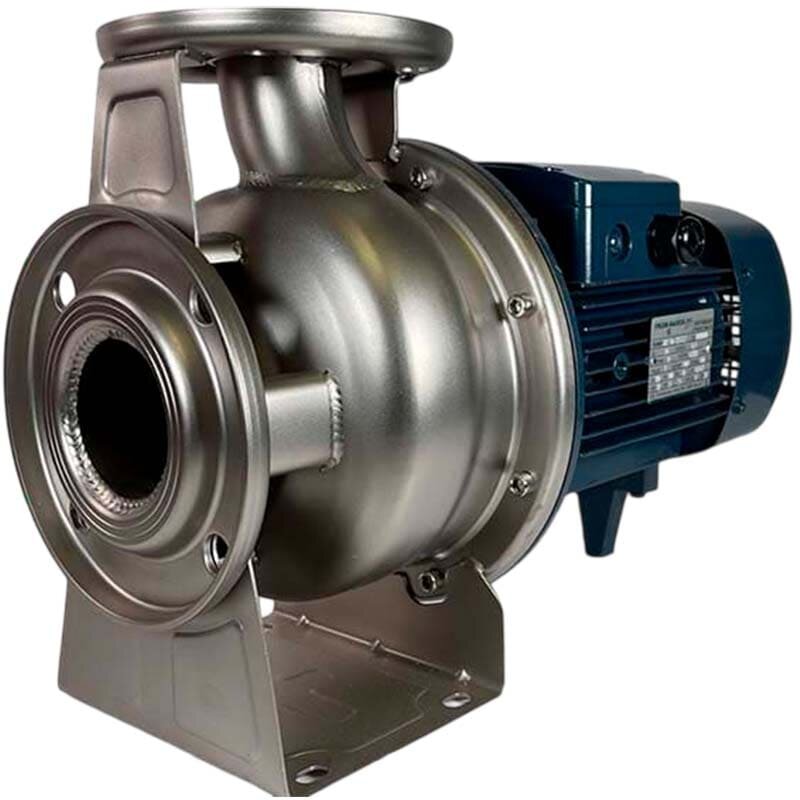

BZm 50-125/2,2 centrifugal monoblock pump (AISI)
Click image for a larger view
BZm 50-125/2,2 centrifugal monoblock pump (AISI)
BZm 50-125/2,2 centrifugal monoblock pump (AISI)
BZm 50-125/2,2 centrifugal monoblock pump (AISI)
BZm 50-125/2,2 centrifugal monoblock pump (AISI)
BZm 50-125/2,2 centrifugal monoblock pump (AISI)
More +2

BZm 50-125/2,2 centrifugal monoblock pump (AISI)

Code: 1019159
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour36
Feed height, m14.9
Power capacity, kW2,2
MaterialAISI 304 stainless steel
Input pipe diameter65
Output pipe diameter40
ProtectionIP55
Power supply1х220 V, 50 Hz
Explosion protectionNo
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h36
Nom.head, m14.9
Housing materialAISI 304 stainless steel
Serial number of the pumpBZm
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
ApplicationCAS, brogue, mudflow solution, brew, urea, cheesecloth, liquid fertilizer, juices, ammonia mixture, wort, milk, water recycling, heating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, food, CIP-washing, salt, caustic, wine
Weight, kg28,1
Length of transport packing, cm45
Width of transport packing, cm39
Height of transport packing, cm32
Height of transport volume, cbm0,056
Show all features (28)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$704.53 (netto)
Добавить в сравнение
We deliver anywhere in the world
Stainless steel standard pump BZ Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications. Suitable for use with clean, aggressive liquids that are chemically compatible with the materials from which the pump is made. The pumps must be installed in enclosed places, or at least protected against inclement weather. TECHNICAL DESCRIPTION - New stainless steel standard pump - Original design by PURITY - Both square motor & round motor available - YE3 high efficient motor, with protection IP55 class F - Pump case in stainless steel AISI 304 - Impeller in stainless steel AISI 304 - Shaft in stainless steel AISI 304 - Quality NSK bearing, wear resistance mechanical seal Liquid temperature between -10℃ and +120℃ Ambient temperature up to +50℃ Max. working pressure 16 bar Continuous service S1
Categories: Centrifugal pumpPump for aggressive liquidMash pumpPump for water supplyWater pumpPump for CASMilk pumpPump for beer and beer wort
ProducerBTS Engineering
Pump capacity, cu.m/hour36
Feed height, m14.9
Power capacity, kW2,2
MaterialAISI 304 stainless steel
Input pipe diameter65
Output pipe diameter40
ProtectionIP55
Power supply1х220 V, 50 Hz
Explosion protectionNo
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h36
Nom.head, m14.9
Housing materialAISI 304 stainless steel
Serial number of the pumpBZm
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
ApplicationCAS, brogue, mudflow solution, brew, urea, cheesecloth, liquid fertilizer, juices, ammonia mixture, wort, milk, water recycling, heating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, food, CIP-washing, salt, caustic, wine
Weight, kg28,1
Length of transport packing, cm45
Width of transport packing, cm39
Height of transport packing, cm32
Height of transport volume, cbm0,056
