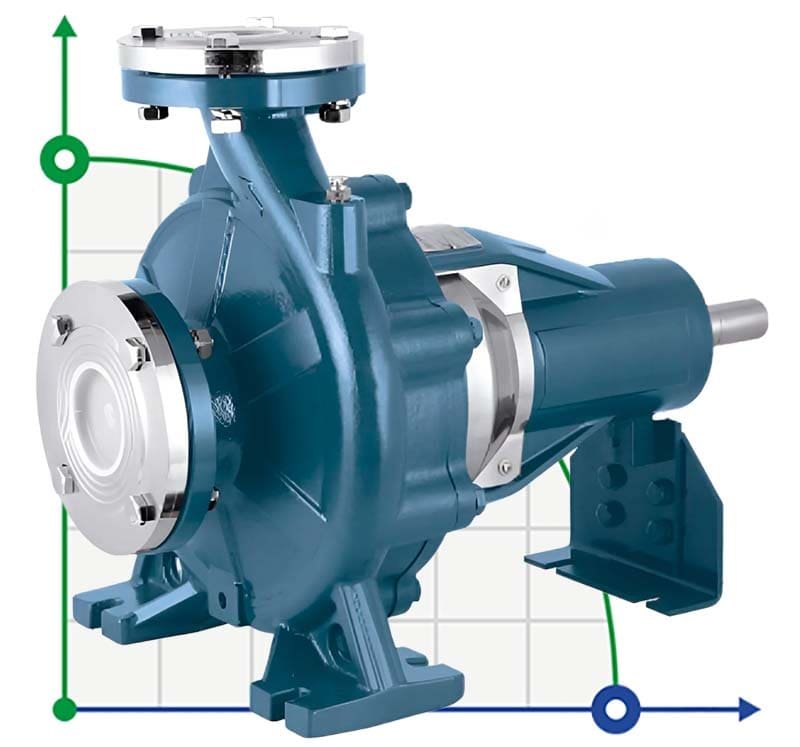

Circulation console pump BS4 80-250/75 (72/21.3), 7.5kW, 1450 without motor

Code: 1045125
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour108
Feed height, m24
Power capacity, kW7,5
Materialcast iron
Input pipe diameterDN100
Output pipe diameterDN80
Rate of turn, rpm1 450
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h108
Nom.pressure, Mpa1,6
Max.temperature, C120
Max. head, m24
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h72
Nom.head, m21.3
Impeller diameter, mm258
Serial number of the pumpBS4
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationheating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, water recycling, circulation
Weight, kg79
Length of transport packing, cm66
Width of transport packing, cm40
Height of transport packing, cm54
Height of transport volume, cbm0,143
Show all features (33)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$973.66 (netto)
Добавить в сравнение
We deliver anywhere in the world
The pumping part of the BS4 series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, watering, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
ProducerBTS Engineering
Pump capacity, cu.m/hour108
Feed height, m24
Power capacity, kW7,5
Materialcast iron
Input pipe diameterDN100
Output pipe diameterDN80
Rate of turn, rpm1 450
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h108
Nom.pressure, Mpa1,6
Max.temperature, C120
Max. head, m24
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h72
Nom.head, m21.3
Impeller diameter, mm258
Serial number of the pumpBS4
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationheating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, water recycling, circulation
Weight, kg79
Length of transport packing, cm66
Width of transport packing, cm40
Height of transport packing, cm54
Height of transport volume, cbm0,143

Download instructions, catalog for Circulation console pump BS4 80-250/75 (72/21.3), 7.5kW, 1450 without motor
