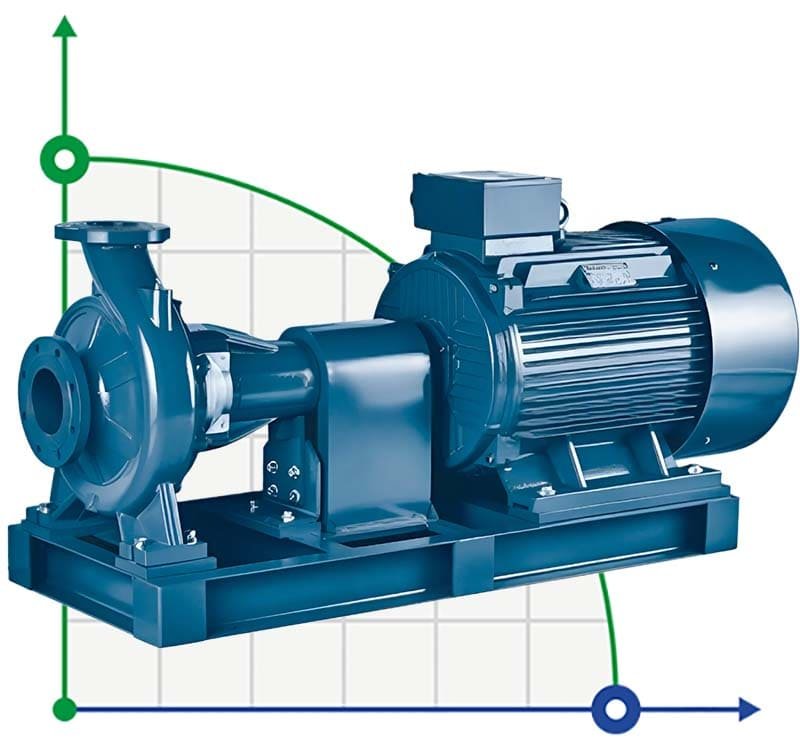

Console pump for water supply BSM4 100-315/150 (140/23.1), 15kW, 1450
Click image for a larger view
Console pump for water supply BSM4 100-315/150 (140/23.1), 15kW, 1450
Console pump for water supply BSM4 100-315/150 (140/23.1), 15kW, 1450
Console pump for water supply BSM4 100-315/150 (140/23.1), 15kW, 1450
Console pump for water supply BSM4 100-315/150 (140/23.1), 15kW, 1450
Console pump for water supply BSM4 100-315/150 (140/23.1), 15kW, 1450

Console pump for water supply BSM4 100-315/150 (140/23.1), 15kW, 1450

Code: 1045365
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour200
Feed height, m28
Power capacity, kW15
Materialcast iron
Input pipe diameterDN125
Output pipe diameterDN100
Rate of turn, rpm1 450
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h200
Nom.pressure, Mpa1,6
Max.temperature, C120
Max. head, m28
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h140
Nom.head, m23.1
Impeller diameter, mm280
Serial number of the pumpBSM4
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationcirculation, water recycling, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, heating
Show all features (28)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$3,339.98 (netto)
Добавить в сравнение
We deliver anywhere in the world
The console pump of the BSM4 series is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
Category: Centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour200
Feed height, m28
Power capacity, kW15
Materialcast iron
Input pipe diameterDN125
Output pipe diameterDN100
Rate of turn, rpm1 450
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h200
Nom.pressure, Mpa1,6
Max.temperature, C120
Max. head, m28
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h140
Nom.head, m23.1
Impeller diameter, mm280
Serial number of the pumpBSM4
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationcirculation, water recycling, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, heating

Download instructions, catalog for Console pump for water supply BSM4 100-315/150 (140/23.1), 15kW, 1450
