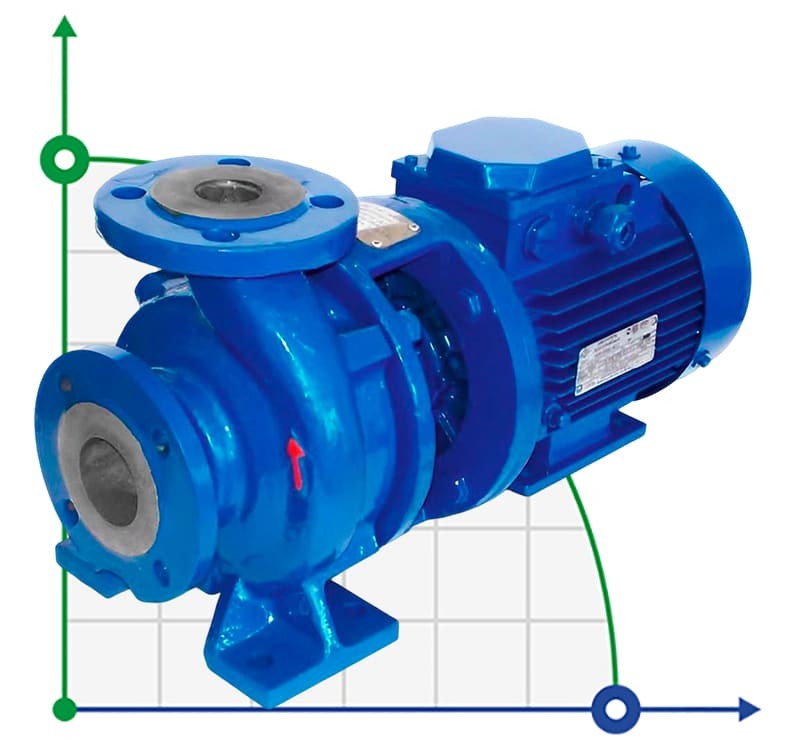

Cantilever monoblock pump KM 50-32-125, 2.2kW, 3000

Code: 1040419
(0 review)
ProducerUkrnasosservis
Pump capacity, cu.m/hour12.5
Feed height, m20
Power capacity, kW2,2
Materialcast iron
Input pipe diameter50
Output pipe diameter32
Rate of turn, rpm3 000
Impeller materialcast iron
Nom.flow rate, m3/h12.5
Nom.head, m20
Serial number of the pump
Country of OriginUkraine
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Weight, kg39
Show all features (18)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$402.18 (netto)
Добавить в сравнение
We deliver anywhere in the world
KM-type cantilever centrifugal pumps are designed for pumping pure water (except sea water) with pH 6...9, and other liquids similar to pure water in terms of density, viscosity and chemical activity. They work in stationary conditions with a temperature in the range from 0 to + 85°С. Pumped liquids should not contain mechanical impurities by volume of more than 0.1% and size of more than 0.2 mm. Sealing of the pump shaft is a single oil seal. The material of the parts of the flow part is gray cast iron. Upon special order, the units are manufactured with a double gland seal (SD) for pumping liquid with a temperature of up to plus 105°С and an end seal (T).
ProducerUkrnasosservis
Pump capacity, cu.m/hour12.5
Feed height, m20
Power capacity, kW2,2
Materialcast iron
Input pipe diameter50
Output pipe diameter32
Rate of turn, rpm3 000
Impeller materialcast iron
Nom.flow rate, m3/h12.5
Nom.head, m20
Serial number of the pump
Country of OriginUkraine
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Weight, kg39

Download instructions, catalog for Cantilever monoblock pump KM 50-32-125, 2.2kW, 3000
