| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 105 |
| Feed height, m | 22 |
| Power capacity, kW | 7,5 |
| Material | cast iron |
| Input pipe diameter | DN100 |
| Output pipe diameter | DN100 |
| Power supply | 3х380 V, 50 Hz |
| Max.flow rate, m3/h | 105 |
| Nom.pressure, Mpa | 1 |
| Max.temperature, C | 120 |
| Material of flow channel | cast iron |
| Max. head, m | 22 |
| Nom.flow rate, m3/h | 90 |
| Nom.head, m | 16 |
| Serial number of the pump | JL |
| Country of Origin | China |
| PumpType | in-line |
| Drive Type | electric |
| Installation Type | vertical |
| Availability of spare parts | yes |
| Warranty, months | 12 |
| Application | water, heating, DHW, drying, glycol, air conditioning systems, cooling, cooling tower, hot water, ice water, the drying chamber, water supply, coolant, hot water, glaze, boiler, circulation, ethylene glycol, water recycling, increasing pressure, water |
| Analogue for | KSB Etaline-R, CALPEDA NC, CALPEDA NR, CALPEDA NM, KSB Etanorm, KSB Calio S, KSB Calio, KSB Etaline, DAB ALM, DAB ALP, DAB KLM, DAB KLP, AB DKLM, DAB DKLP, DAB CM, DAB CM-G, DAB DCM, DAB DCM-G, DAB CP, DAB CP-G, PSPRUT 3VP, SPRUT 1V, SPRUT 3VP, SPRUT GPD, Speroni SCR, WILO TOP-S, WILO CronoLine-IL-E, WILO VeroLine-IPL, EBARA LPS, EBARA EGO EASY, Grundfos UPS, DAB DCP-G, DAB DCP |
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 105 |
| Feed height, m | 22 |
| Power capacity, kW | 7,5 |
| Material | cast iron |
| Input pipe diameter | DN100 |
| Output pipe diameter | DN100 |
| Power supply | 3х380 V, 50 Hz |
| Max.flow rate, m3/h | 105 |
| Nom.pressure, Mpa | 1 |
| Max.temperature, C | 120 |
| Material of flow channel | cast iron |
| Max. head, m | 22 |
| Nom.flow rate, m3/h | 90 |
| Nom.head, m | 16 |
| Serial number of the pump | JL |
| Country of Origin | China |
| PumpType | in-line |
| Drive Type | electric |
| Installation Type | vertical |
| Availability of spare parts | yes |
| Warranty, months | 12 |
| Application | water, heating, DHW, drying, glycol, air conditioning systems, cooling, cooling tower, hot water, ice water, the drying chamber, water supply, coolant, hot water, glaze, boiler, circulation, ethylene glycol, water recycling, increasing pressure, water |
| Analogue for | KSB Etaline-R, CALPEDA NC, CALPEDA NR, CALPEDA NM, KSB Etanorm, KSB Calio S, KSB Calio, KSB Etaline, DAB ALM, DAB ALP, DAB KLM, DAB KLP, AB DKLM, DAB DKLP, DAB CM, DAB CM-G, DAB DCM, DAB DCM-G, DAB CP, DAB CP-G, PSPRUT 3VP, SPRUT 1V, SPRUT 3VP, SPRUT GPD, Speroni SCR, WILO TOP-S, WILO CronoLine-IL-E, WILO VeroLine-IPL, EBARA LPS, EBARA EGO EASY, Grundfos UPS, DAB DCP-G, DAB DCP |

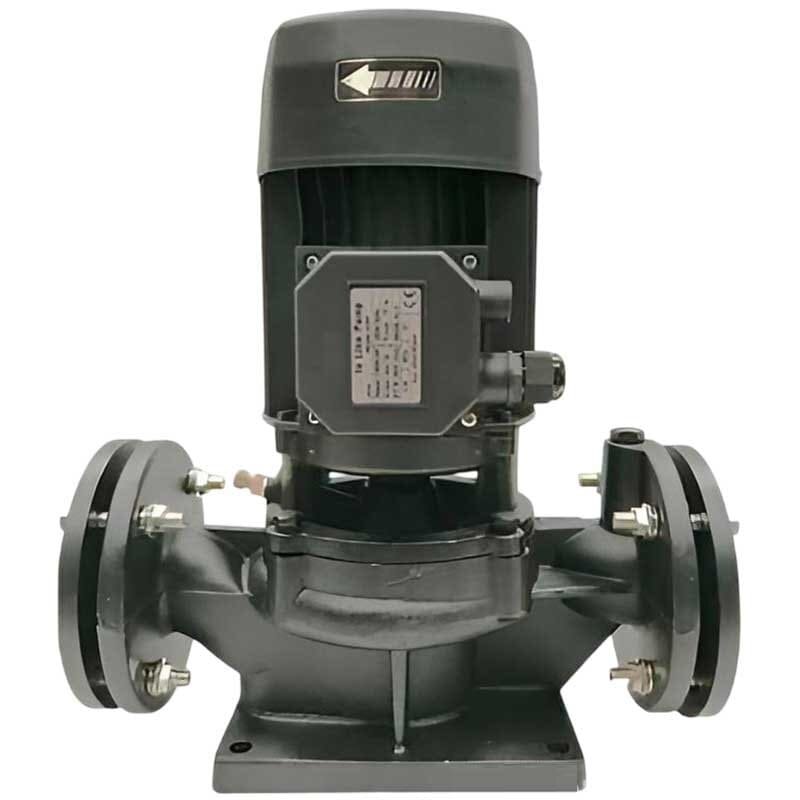

Download instructions, catalog for JL 100 L Centrifugal pump
