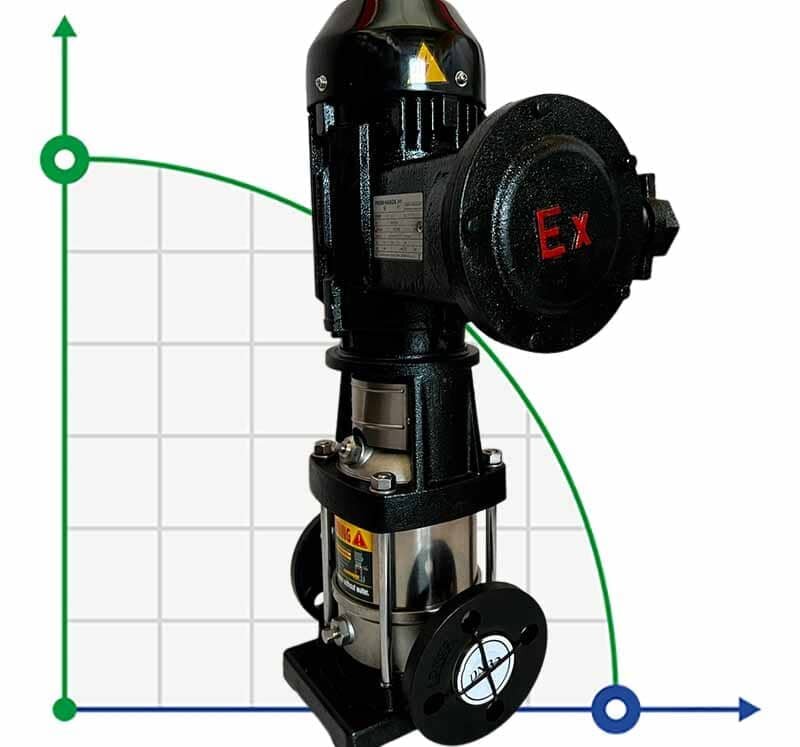

BVS 64-60-1 distillate alcohol pump, 37 kW, AISI 304, Ex

Code: 1046698
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour80
Feed height, m157
Power capacity, kW37
MaterialAISI 304 stainless steel
Input pipe diameterDN100
Output pipe diameterDN100
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h80
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Max. head, m157
SealMechanical Seal
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h64
Nom.head, m117
Housing materialAISI 304 stainless steel
Serial number of the pumpBVS
Country of OriginChina
PumpTypemulti-stage
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwater treatment, Water Treatment, fountain, steam boiler, membranes, osmosis, washing, jets, wash, aeroponics, greenhouses, hydroponics, hot water, water, water, increasing pressure, boiler, alkalis, caustic, irrigation
Analogue forSperoni RVM, Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, EBARA EVMW, Ebara EVMS, EBARA EVM, Varna
Show all features (29)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$8,970.25 (netto)
Добавить в сравнение
We deliver anywhere in the world
Багатоступінчасті насоси BVS з нержавіючої сталі AISI 304 підходять для систем промислової обробки, систем мийки та очищення, перекачування кислот і лугів, фільтрації, підвищення тиску, очищення води, кондиціонування, зрошення, систем протипожежного захисту.
ProducerBTS Engineering
Pump capacity, cu.m/hour80
Feed height, m157
Power capacity, kW37
MaterialAISI 304 stainless steel
Input pipe diameterDN100
Output pipe diameterDN100
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h80
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Max. head, m157
SealMechanical Seal
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h64
Nom.head, m117
Housing materialAISI 304 stainless steel
Serial number of the pumpBVS
Country of OriginChina
PumpTypemulti-stage
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwater treatment, Water Treatment, fountain, steam boiler, membranes, osmosis, washing, jets, wash, aeroponics, greenhouses, hydroponics, hot water, water, water, increasing pressure, boiler, alkalis, caustic, irrigation
Analogue forSperoni RVM, Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, EBARA EVMW, Ebara EVMS, EBARA EVM, Varna
Loading...
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
1042834
Producer
BTS Engineering
Power capacity, kW
0,75-4
In stock
0
$135.86
PN16 DN125 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
1042543
Conditional passage,DN
125
Material of the disk
AISI 304 stainless steel
In stock
0
$161.09
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
1042833
Producer
BTS Engineering
Power capacity, kW
0,37-3
In stock
0
$90.59
PN16 DN40 Stainless steel ball valve AISI 316, seat PTFE
1040598
Conditional passage,DN
40
Producer
BTS Engineering
In stock
0
$201.09
DN50 Thermodynamic flanged condensate trap PN16/1.0619
1040125
Conditional passage,DN
50
Producer
BTS Engineering
In stock
0
$531.58
Products from the same category
BVS 64-40, 22 kW, AISI 304, Ex multistage pump
1046693
Producer
BTS Engineering
Pump capacity, cu.m/hour
80
Preorder
0
$7,629.71
Multistage dehydrate pump BVS 64-50-2, 30 kW, AISI 304, Ex
1046694
Producer
BTS Engineering
Pump capacity, cu.m/hour
80
Preorder
0
$8,071.43

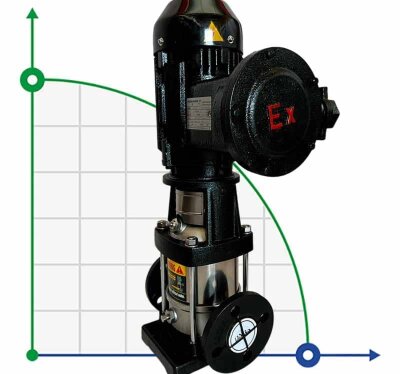

Explosion-proof solvent pump BVS 64-50-1, 30 kW, AISI 304, Ex
