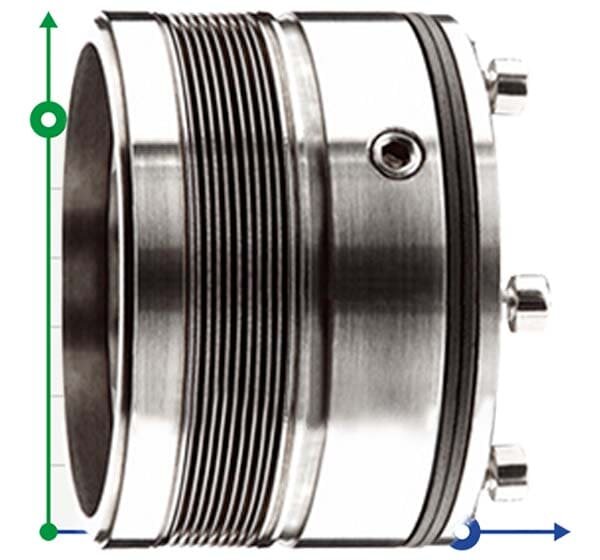

Mechanical seal R-MFL WT80 80, CAR/SIC, GRAPHITE, AM350/316

Code: 13702_80__CAR/SIC__GRAPHITE__AM350/316
(0 review)
ProducerBTS Engineering
Shaft diameter80
Rubber typeGRAPHITE
Material of metal partAM350/316
Stationary and rotating faceCAR/SIC
Operating temperature-20°C +400°C
Pressure2.5 MPa
Rotation velocity15 m/s
Seal typeR-MFL WT80
Analogue forBurgmann MFLWT, John Crane 606
Gross weight, kg0.25
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Show all features (14)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
Mechanical seal R-MFL WT80 (606, 680W, MB-B04) is used at temperatures ranging from -40 to + 200°C, a pressure up to 2 MPa and 5 rotation speed to 15 m/sec. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
ProducerBTS Engineering
Shaft diameter80
Rubber typeGRAPHITE
Material of metal partAM350/316
Stationary and rotating faceCAR/SIC
Operating temperature-20°C +400°C
Pressure2.5 MPa
Rotation velocity15 m/s
Seal typeR-MFL WT80
Analogue forBurgmann MFLWT, John Crane 606
Gross weight, kg0.25
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
