Mechanical seal for Grundfos R-706F 16, TC/TC, VITON, 304

Product list

Home
Mechanical seal for the pump
Mechanical seal for Grundfos R-706F 16, TC/TC, VITON, 304

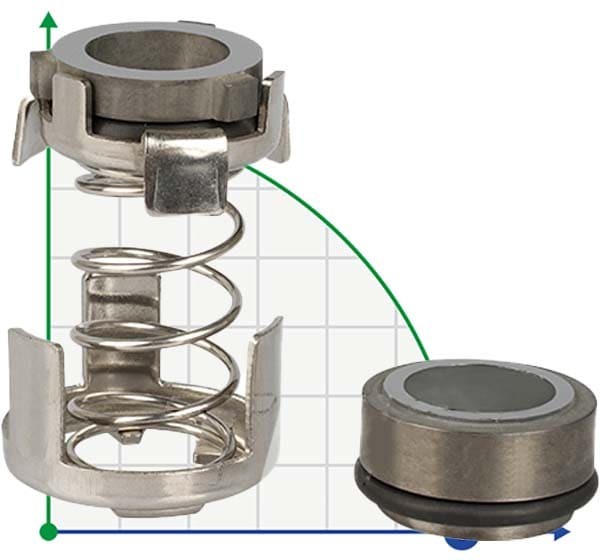

Mechanical seal for Grundfos R-706F 16, TC/TC, VITON, 304

Click image for a larger view

Code: 14558_16__TC/TC__VITON__304

(0 review)

Producer	BTS Engineering
Shaft diameter	16
Rubber type	VITON
Material of metal part	304
Stationary and rotating face	TC/TC
Seal type	R-706F
Application	Grundfos
Analogue for	Grundfos RUUE, Grundfos AUUE, Grundfos AUUV
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10

Show all features (12)

Documentation

Description Mechanical seal for Grundfos R-706F 16, TC/TC, VITON, 304

Mechanical seal type R-706F is designed to pump Grundfos. R-706F-12mm: Marking Grundfos 985167, 405145, 405009, 96513598. R-706F-16mm: Marking Grundfos 985204, 339701 , 96521638. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Categories: Mechanical seal for the pump Mechanical seals of Grundfos pump

Features Mechanical seal for Grundfos R-706F 16, TC/TC, VITON, 304

Producer	BTS Engineering
Shaft diameter	16
Rubber type	VITON
Material of metal part	304
Stationary and rotating face	TC/TC
Seal type	R-706F
Application	Grundfos
Analogue for	Grundfos RUUE, Grundfos AUUE, Grundfos AUUV
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10
