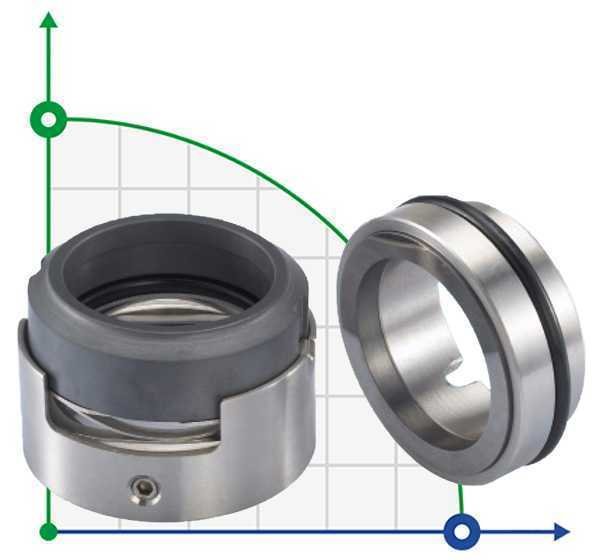

Mechanical seal R-H7N 35, CAR/SIC, EPDM, 304, G9

Code: 1022413_35__CAR/SIC__EPDM__304__G9
(0 review)
ProducerBTS Engineering
Shaft diameter35
Rubber typeEPDM
Material of metal part304
Stationary and rotating faceCAR/SIC
Operating temperature-50°C +220°C
Pressure2.5 MPa
Rotation velocity20 m/s
Seal typeR-H7N
Type of conta-ringG9
ApplicationFRISTAM, LOWARA, Sterling (SIHI)
Analogue forAESSEAL W07DMB, AESSEAL W07DMBU, Burgmann H7N, LIDERING LWS10B, Latty B68, Vulcan 1678
Gross weight, kg0.25
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Show all features (16)
Ukraine: In stock
Poland: Pre-order only
Germany: Pre-order only
$236.95 (netto)
Добавить в сравнение
We deliver anywhere in the world
Mechanical Face Seal R-H7N - Single, balanced, with an arbitrary direction of rotation. Analogues: AESSEAL W07DMBU / W07DMBU, Burgmann H7N. Combinations of the counter ring with cooling (G115), a multi-spring unit in the protective sleeve (H 75), with a continuous movable ring of carbon graphite (to be used in an environment of volatile hydrocarbons, H 75 VN), with a coil spring (H76), with integrated impeller ( H75F). Temperature: -50°С ~ 220°С Pressure: ≤2.5 MPa Speed: ≤20 m/s materials: 1- rotating ring: SiC / TC / Carbon. 2- Stationary Ring: Carbon / SiC / TC. 3- bellows: VITON / FEP. 4- Spring: SS304 / SS316. 5- Metal parts: SS304 / SS316 Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
ProducerBTS Engineering
Shaft diameter35
Rubber typeEPDM
Material of metal part304
Stationary and rotating faceCAR/SIC
Operating temperature-50°C +220°C
Pressure2.5 MPa
Rotation velocity20 m/s
Seal typeR-H7N
Type of conta-ringG9
ApplicationFRISTAM, LOWARA, Sterling (SIHI)
Analogue forAESSEAL W07DMB, AESSEAL W07DMBU, Burgmann H7N, LIDERING LWS10B, Latty B68, Vulcan 1678
Gross weight, kg0.25
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
