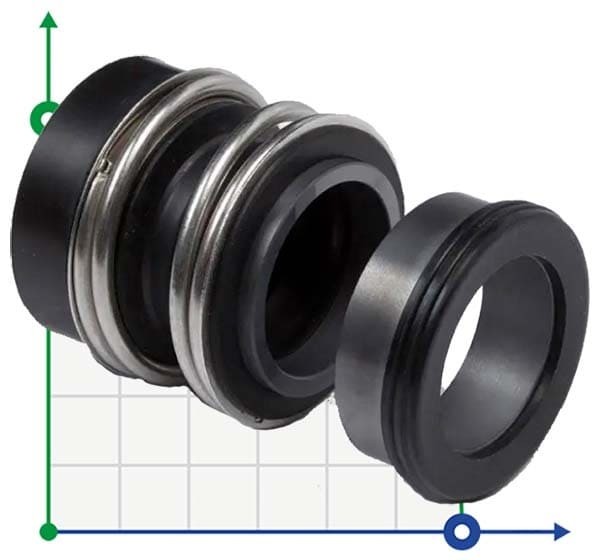

The mechanical shaft seal of the KSB R-MG1S6 pump with a central spring, bellows type, does not depend on the direction of rotation of the shaft. For internal arrangement and operation in low-viscosity liquids with a low content of abrasives.
EN 12756 standards.
It is used in KSB pumps.
Type: Burgmann MG1S6, KSB NU028, DIN KSB-ZN118, NU028SO-1 ZN1181, MG1S6 / 28-G61, AESSEAL B02K, Flowserve KZN, Vulcan 192K.
Temperature: -20°~140°
Pressure: ≤1.6 MPa
Speed: ≤10 m/sec
Materials
• Rotating Ring: CAR/SIC
• Fixed ring: SIC.
• Bellows: NBR/ EPDM/ VITON.
• Spring: SS304 / SS316
• Metal parts: SS304 / SS316.
