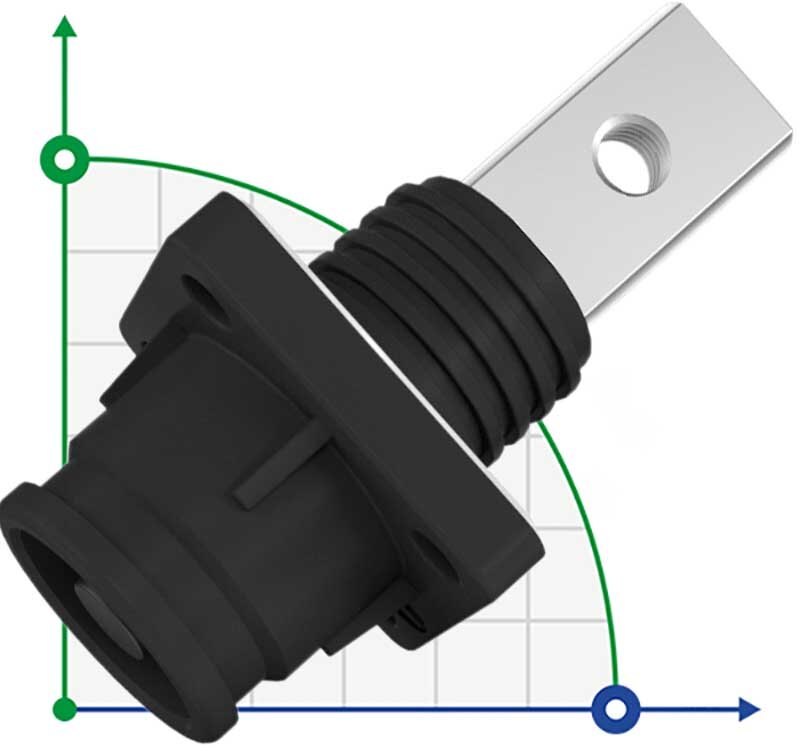

JC-CN12-S-03-M Socket connector for energy storage systems 250A/300A/350A, 1500V DC, black

Code: 1050072
(0 review)
Colorblack (-)
Rated voltage, V1500V DC
Rated current, A350A, 300A, 250A
Contact resistance≤0.2mΩ(100mA)
Plugging force≤75N
Number of mating cycles≥ 500
Number of coressingle core
Insulation resistance>500MΩ
Dielectric strength4000V AC
Connection typeM: threaded hole
ProducerRJCNE
MaterialPA66/T2Y pure silver-plated copper
ProtectionIP67\UL94 V-0
Typeconnector
Operating temperature-40°C +125°C
SeriesCN
Country of OriginChina
Show all features (17)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$22.86 (netto)
Добавить в сравнение
We deliver anywhere in the world
CN series products are connectors for energy storage systems, which are high-voltage connectors specially designed for the energy storage industry, which mainly includes: 70A ~ 120A, 150A ~ 200A, 250A ~ 300A, 250A ~ 350A, 400A ~ 450A. Connectors are UL1977/4128 certified. The contacts are made of high-quality copper alloy to ensure the reliability of the electrical connection. The design of the connector includes a reliable fixation system that ensures a high-quality electrical and mechanical connection. The body of the connector is made of thermoplastic material, which is not only durable, but also has excellent dielectric and mechanical properties, and meets environmental requirements thanks to the lead-free certification. Screws and cables are not included. Available colors: orange or red for positive pole (+), black for negative pole (-).
Colorblack (-)
Rated voltage, V1500V DC
Rated current, A350A, 300A, 250A
Contact resistance≤0.2mΩ(100mA)
Plugging force≤75N
Number of mating cycles≥ 500
Number of coressingle core
Insulation resistance>500MΩ
Dielectric strength4000V AC
Connection typeM: threaded hole
ProducerRJCNE
MaterialPA66/T2Y pure silver-plated copper
ProtectionIP67\UL94 V-0
Typeconnector
Operating temperature-40°C +125°C
SeriesCN
Country of OriginChina

Download instructions, catalog for JC-CN12-S-03-M Socket connector for energy storage systems 250A/300A/350A, 1500V DC, black
