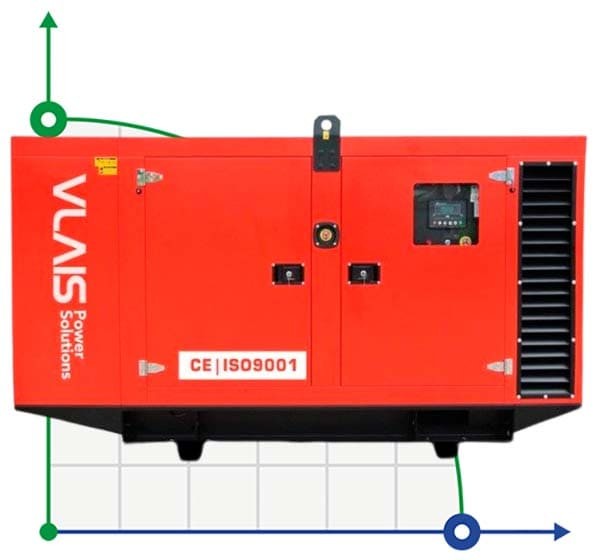

Industrial diesel generator VLAIS KDE-125T with ATS, engine Ricardo 125kVA, 100kW, 380V/50HZ closed type

Code: 1039707
(0 review)
Tank volume150
Fuel typediesel fuel
Rated power, kW100
Rated power, kVA125
Frequency, Hz50
Rated voltage, V380V
Rated current, A190
Engine modelR6105IZLD/121kW
Alternator modelCP-274D/96kW
Control panelMebay DC52D Digital LCD display panel
Bore * stroke, mm105x135
Fuel consumption at full load, (l/h)26
Insulation gradeH
Maximum power, kW110
Maximum power, kVA137,5
Generator typeclosed
Engine manufacturerRicardo
ProducerVLAIS
Rate of turn, rpm1 500
ModelKDE-125T
Dimensions, mm2800x1080x1500
Operating temperature-18°C +50°C
Country of OriginChina
Warranty, months12 months but not more than 1000 motor hours
Weight, kg1 600
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$16,956.83 (netto)
Добавить в сравнение
We deliver anywhere in the world
VLAIS diesel generator with control panel and Ricardo engine of closed type. Includes ATS - a voltage monitoring system and automatic generator start in the event of a power failure from the external power supply. Diesel engine: 4-cylinder, 4-stroke, in-line, direct injection, naturally aspirated or turbocharged, water-cooled, equipped with an electric starter. The starting system is an electric starter. The generator is equipped with an automatic voltage regulator (AVR) and a single bearing. The control panel displays voltage, current, frequency, water temperature and oil pressure. The generator has protection against high cooling water temperature, low oil pressure, high and low frequency protection, high and low voltage protection. To ensure safe transport, the generator is supplied without a battery.
Tank volume150
Fuel typediesel fuel
Rated power, kW100
Rated power, kVA125
Frequency, Hz50
Rated voltage, V380V
Rated current, A190
Engine modelR6105IZLD/121kW
Alternator modelCP-274D/96kW
Control panelMebay DC52D Digital LCD display panel
Bore * stroke, mm105x135
Fuel consumption at full load, (l/h)26
Insulation gradeH
Maximum power, kW110
Maximum power, kVA137,5
Generator typeclosed
Engine manufacturerRicardo
ProducerVLAIS
Rate of turn, rpm1 500
ModelKDE-125T
Dimensions, mm2800x1080x1500
Operating temperature-18°C +50°C
Country of OriginChina
Warranty, months12 months but not more than 1000 motor hours
Weight, kg1 600
