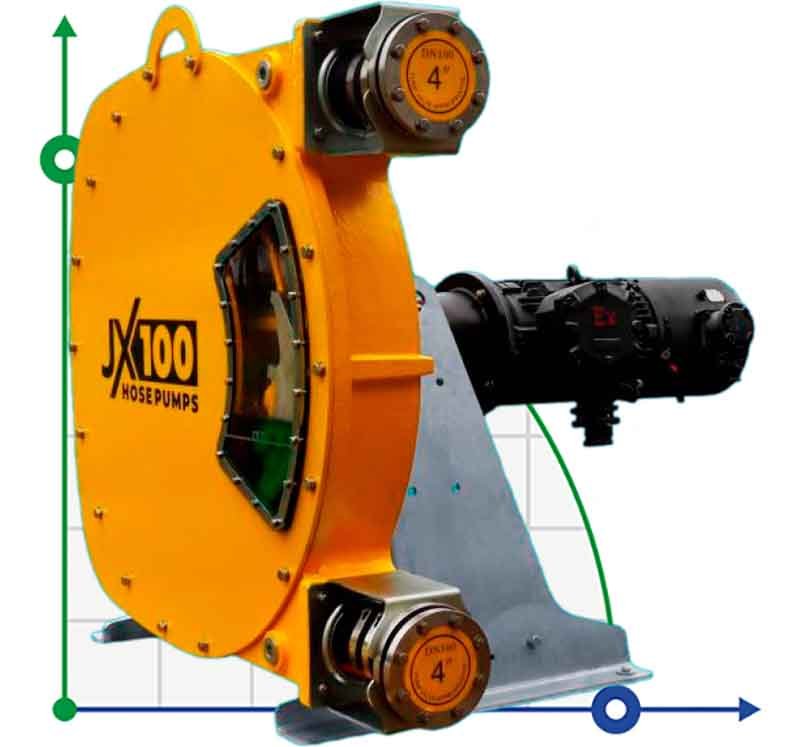

Industrial hose pump JXHIN-100-CI+ABS Plastic-F-NR-P, 42 m3/h, 15 kW, 16 bar, 380V

Code: 1043184
(0 review)
Contact materialABS Plastic
ProducerBTS Engineering
Pump capacity, cu.m/hour42
Feed height, m160
Power capacity, kW15
Materialcast iron
Input pipe diameter4"
Output pipe diameter4"
Rate of turn, rpm35
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h60
Max.temperature, C80
Max. head, m160
Flow rate, l/h42000
Nom.flow rate, m3/h42
Dimensions, mm1395x1469x1382
Pressure, bar16
Material for working hoosF-NR
Housing materialСast iron
Max.dry suction head, m9,5
Serial number of the pumpJXHIN
Country of OriginChina
PumpTypeperistaltic
Drive Typeelectric
Weight, kg1 300
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
The JXHIN series industrial hose pump is used for pumping abrasive slurries, caustic acids, large solids, gas-liquid mixtures, and highly viscous liquids. Characteristics of the hose peristaltic pump: dry start without damage, leak-proof, no gaskets, valves, diaphragms, etc. Stable flow, accurate and repeatable measurement. Accuracy ± 1%. No auxiliary equipment, check valves or water flushing systems. Reversible operation, particles can safely exit the suction or discharge pipe. Minimal maintenance - simply replace the hose.
Contact materialABS Plastic
ProducerBTS Engineering
Pump capacity, cu.m/hour42
Feed height, m160
Power capacity, kW15
Materialcast iron
Input pipe diameter4"
Output pipe diameter4"
Rate of turn, rpm35
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h60
Max.temperature, C80
Max. head, m160
Flow rate, l/h42000
Nom.flow rate, m3/h42
Dimensions, mm1395x1469x1382
Pressure, bar16
Material for working hoosF-NR
Housing materialСast iron
Max.dry suction head, m9,5
Serial number of the pumpJXHIN
Country of OriginChina
PumpTypeperistaltic
Drive Typeelectric
Weight, kg1 300

Download instructions, catalog for Industrial hose pump JXHIN-100-CI+ABS Plastic-F-NR-P, 42 m3/h, 15 kW, 16 bar, 380V
