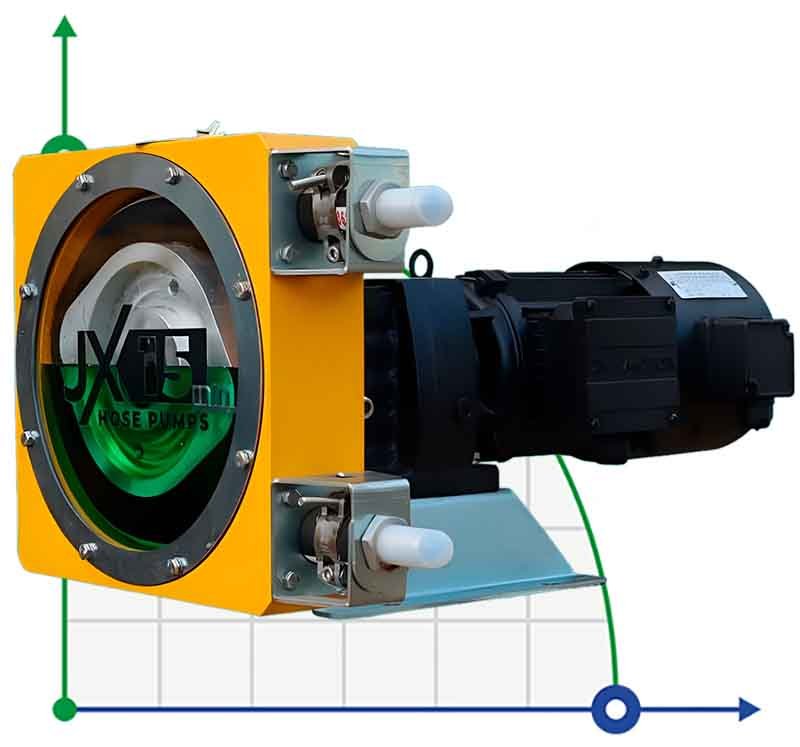

Industrial hose pump JXHIN-15-AL-F-NBR-P, 215 l/h, 0,55 kW, 12 bar, 380V
Click image for a larger view
Industrial hose pump JXHIN-15-AL-F-NBR-P, 215 l/h, 0,55 kW, 12 bar, 380V
Industrial hose pump JXHIN-15-AL-F-NBR-P, 215 l/h, 0,55 kW, 12 bar, 380V
Industrial hose pump JXHIN-15-AL-F-NBR-P, 215 l/h, 0,55 kW, 12 bar, 380V

Industrial hose pump JXHIN-15-AL-F-NBR-P, 215 l/h, 0,55 kW, 12 bar, 380V

Code: 1043043
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour0.215
Feed height, m120
Power capacity, kW0,55
MaterialAL
Input pipe diameter1/2"
Output pipe diameter1/2"
Rate of turn, rpm43
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h0.525
Max.temperature, C80
Max. head, m120
Max.diameter of solid inclusions, mm2,5
Flow rate, l/h215
Nom.flow rate, m3/h0.215
Dimensions, mm685x399x315,7
Pressure, bar12
Material for working hoosF-NBR
Housing materialалюміній
Max.dry suction head, m9,5
Serial number of the pumpJXHIN
Country of OriginChina
PumpTypeperistaltic
Drive Typeelectric
Weight, kg41
Show all features (25)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
The JXHIN series industrial hose pump is used for pumping abrasive slurries, caustic acids, large solids, gas-liquid mixtures, and highly viscous liquids. Characteristics of the hose peristaltic pump: dry start without damage, leak-proof, no gaskets, valves, diaphragms, etc. Stable flow, accurate and repeatable measurement. Accuracy ± 1%. No auxiliary equipment, check valves or water flushing systems. Reversible operation, particles can safely exit the suction or discharge pipe. Minimal maintenance - simply replace the hose.
Category: Peristaltic pumps
ProducerBTS Engineering
Pump capacity, cu.m/hour0.215
Feed height, m120
Power capacity, kW0,55
MaterialAL
Input pipe diameter1/2"
Output pipe diameter1/2"
Rate of turn, rpm43
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h0.525
Max.temperature, C80
Max. head, m120
Max.diameter of solid inclusions, mm2,5
Flow rate, l/h215
Nom.flow rate, m3/h0.215
Dimensions, mm685x399x315,7
Pressure, bar12
Material for working hoosF-NBR
Housing materialалюміній
Max.dry suction head, m9,5
Serial number of the pumpJXHIN
Country of OriginChina
PumpTypeperistaltic
Drive Typeelectric
Weight, kg41

Download instructions, catalog for Industrial hose pump JXHIN-15-AL-F-NBR-P, 215 l/h, 0,55 kW, 12 bar, 380V
