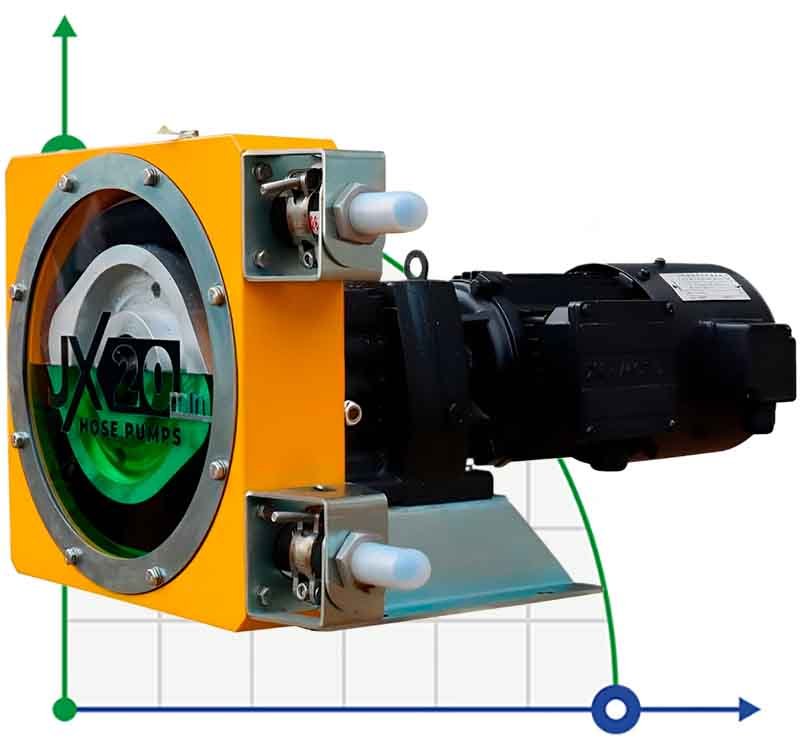

Industrial hose pump JXHIN-20-AL-F-NR-P, 391 l/h, 0,55 kW, 10 bar, 380V
Click image for a larger view
Industrial hose pump JXHIN-20-AL-F-NR-P, 391 l/h, 0,55 kW, 10 bar, 380V
Industrial hose pump JXHIN-20-AL-F-NR-P, 391 l/h, 0,55 kW, 10 bar, 380V
Industrial hose pump JXHIN-20-AL-F-NR-P, 391 l/h, 0,55 kW, 10 bar, 380V

Industrial hose pump JXHIN-20-AL-F-NR-P, 391 l/h, 0,55 kW, 10 bar, 380V

Code: 1043064
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour0.391
Feed height, m100
Power capacity, kW0,55
MaterialAL
Input pipe diameter3/4"
Output pipe diameter3/4"
Rate of turn, rpm43
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h0.821
Max.temperature, C80
Max. head, m100
Max.diameter of solid inclusions, mm3,3
Flow rate, l/h391
Nom.flow rate, m3/h0.391
Dimensions, mm685x385x315,7
Pressure, bar10
Material for working hoosF-NR
Housing materialалюміній
Max.dry suction head, m9,5
Serial number of the pumpJXHIN
Country of OriginChina
PumpTypeperistaltic
Drive Typeelectric
Weight, kg41
Show all features (25)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
The JXHIN series industrial hose pump is used for pumping abrasive slurries, caustic acids, large solids, gas-liquid mixtures, and highly viscous liquids. Characteristics of the hose peristaltic pump: dry start without damage, leak-proof, no gaskets, valves, diaphragms, etc. Stable flow, accurate and repeatable measurement. Accuracy ± 1%. No auxiliary equipment, check valves or water flushing systems. Reversible operation, particles can safely exit the suction or discharge pipe. Minimal maintenance - simply replace the hose.
Category: Peristaltic pumps
ProducerBTS Engineering
Pump capacity, cu.m/hour0.391
Feed height, m100
Power capacity, kW0,55
MaterialAL
Input pipe diameter3/4"
Output pipe diameter3/4"
Rate of turn, rpm43
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h0.821
Max.temperature, C80
Max. head, m100
Max.diameter of solid inclusions, mm3,3
Flow rate, l/h391
Nom.flow rate, m3/h0.391
Dimensions, mm685x385x315,7
Pressure, bar10
Material for working hoosF-NR
Housing materialалюміній
Max.dry suction head, m9,5
Serial number of the pumpJXHIN
Country of OriginChina
PumpTypeperistaltic
Drive Typeelectric
Weight, kg41

Download instructions, catalog for Industrial hose pump JXHIN-20-AL-F-NR-P, 391 l/h, 0,55 kW, 10 bar, 380V
