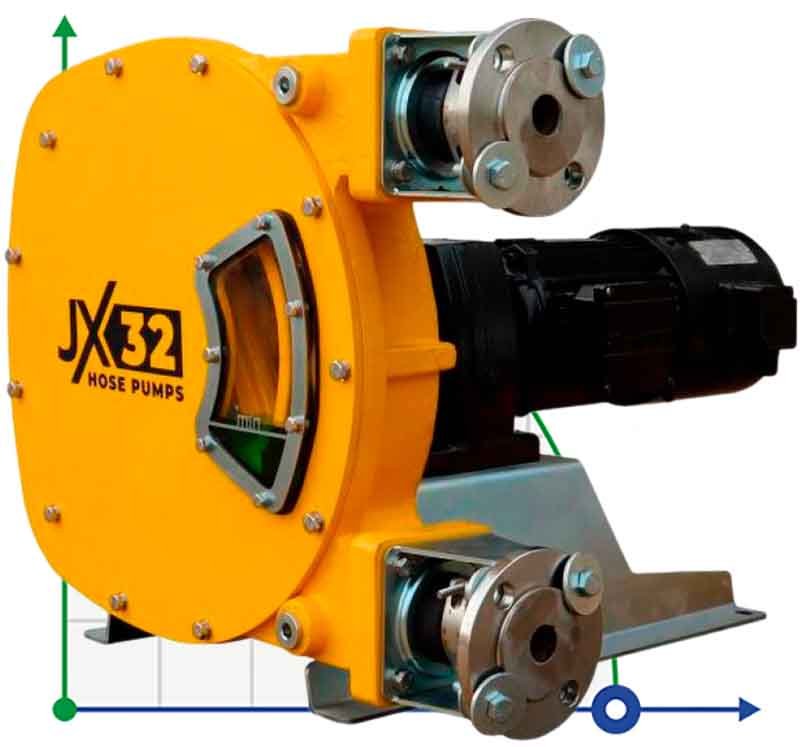

Industrial hose pump JXHIN-32-CI+SS-CSM-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V
Click image for a larger view
Industrial hose pump JXHIN-32-CI+SS-CSM-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V
Industrial hose pump JXHIN-32-CI+SS-CSM-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V
Industrial hose pump JXHIN-32-CI+SS-CSM-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V

Industrial hose pump JXHIN-32-CI+SS-CSM-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V

Code: 1043102
(0 review)
Contact materialAISI
ProducerBTS Engineering
Pump capacity, cu.m/hour1.65
Feed height, m160
Power capacity, kW1,5
Materialcast iron
Input pipe diameter1 1/4"
Output pipe diameter1 1/4"
Rate of turn, rpm44
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h5.25
Max.temperature, C85
Max. head, m160
Max.diameter of solid inclusions, mm5,4
Flow rate, l/h1650
Nom.flow rate, m3/h1.65
Dimensions, mm722,5x601x514,5
Pressure, bar16
Material for working hoosCSM
Housing materialСast iron
Max.dry suction head, m9,5
Serial number of the pumpJXHIN
Country of OriginChina
PumpTypeperistaltic
Drive Typeelectric
Weight, kg122
Show all features (26)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
The JXHIN series industrial hose pump is used for pumping abrasive slurries, caustic acids, large solids, gas-liquid mixtures, and highly viscous liquids. Characteristics of the hose peristaltic pump: dry start without damage, leak-proof, no gaskets, valves, diaphragms, etc. Stable flow, accurate and repeatable measurement. Accuracy ± 1%. No auxiliary equipment, check valves or water flushing systems. Reversible operation, particles can safely exit the suction or discharge pipe. Minimal maintenance - simply replace the hose.
Category: Peristaltic pumps
Contact materialAISI
ProducerBTS Engineering
Pump capacity, cu.m/hour1.65
Feed height, m160
Power capacity, kW1,5
Materialcast iron
Input pipe diameter1 1/4"
Output pipe diameter1 1/4"
Rate of turn, rpm44
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h5.25
Max.temperature, C85
Max. head, m160
Max.diameter of solid inclusions, mm5,4
Flow rate, l/h1650
Nom.flow rate, m3/h1.65
Dimensions, mm722,5x601x514,5
Pressure, bar16
Material for working hoosCSM
Housing materialСast iron
Max.dry suction head, m9,5
Serial number of the pumpJXHIN
Country of OriginChina
PumpTypeperistaltic
Drive Typeelectric
Weight, kg122

Download instructions, catalog for Industrial hose pump JXHIN-32-CI+SS-CSM-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V
