Industrial hose pump JXHIN-32-CI+Titanium-F-NBR-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V

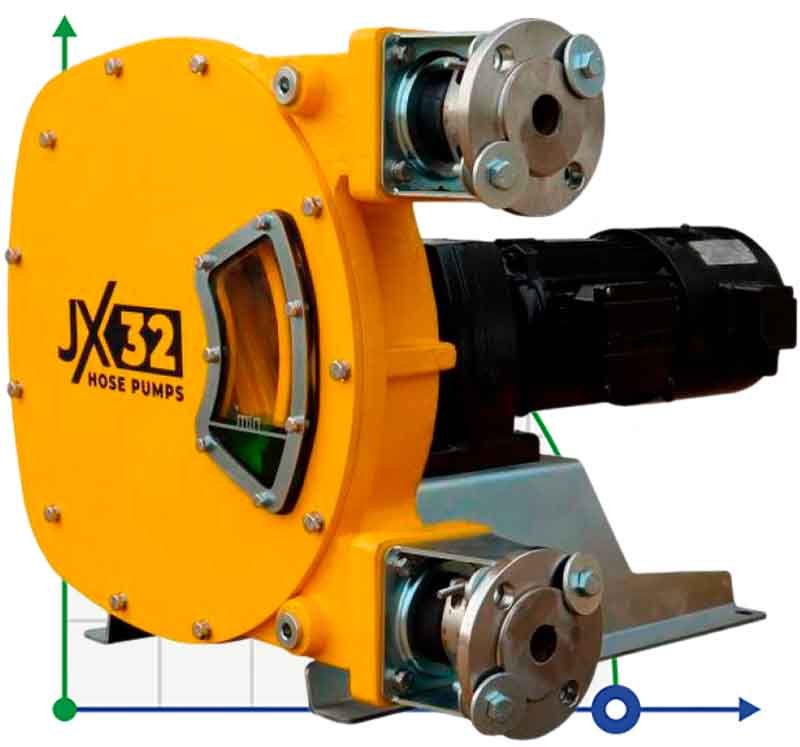

Click image for a larger view
Industrial hose pump JXHIN-32-CI+Titanium-F-NBR-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V
Industrial hose pump JXHIN-32-CI+Titanium-F-NBR-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V
Industrial hose pump JXHIN-32-CI+Titanium-F-NBR-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V

Industrial hose pump JXHIN-32-CI+Titanium-F-NBR-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V

Code: 1043109
(0 review)
Contact materialTtitanium
ProducerBTS Engineering
Pump capacity, cu.m/hour1.65
Feed height, m160
Power capacity, kW1,5
Materialcast iron
Input pipe diameter1 1/4"
Output pipe diameter1 1/4"
Rate of turn, rpm44
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h5.25
Max.temperature, C80
Max. head, m160
Max.diameter of solid inclusions, mm5,4
Flow rate, l/h1650
Nom.flow rate, m3/h1.65
Dimensions, mm722,5x601x514,5
Pressure, bar16
Material for working hoosF-NBR
Housing materialСast iron
Max.dry suction head, m9,5
Serial number of the pumpJXHIN
Country of OriginChina
PumpTypeperistaltic
Drive Typeelectric
Weight, kg122
Show all features (26)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
The JXHIN series industrial hose pump is used for pumping abrasive slurries, caustic acids, large solids, gas-liquid mixtures, and highly viscous liquids. Characteristics of the hose peristaltic pump: dry start without damage, leak-proof, no gaskets, valves, diaphragms, etc. Stable flow, accurate and repeatable measurement. Accuracy ± 1%. No auxiliary equipment, check valves or water flushing systems. Reversible operation, particles can safely exit the suction or discharge pipe. Minimal maintenance - simply replace the hose.
Category: Peristaltic pumps
Contact materialTtitanium
ProducerBTS Engineering
Pump capacity, cu.m/hour1.65
Feed height, m160
Power capacity, kW1,5
Materialcast iron
Input pipe diameter1 1/4"
Output pipe diameter1 1/4"
Rate of turn, rpm44
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h5.25
Max.temperature, C80
Max. head, m160
Max.diameter of solid inclusions, mm5,4
Flow rate, l/h1650
Nom.flow rate, m3/h1.65
Dimensions, mm722,5x601x514,5
Pressure, bar16
Material for working hoosF-NBR
Housing materialСast iron
Max.dry suction head, m9,5
Serial number of the pumpJXHIN
Country of OriginChina
PumpTypeperistaltic
Drive Typeelectric
Weight, kg122

Download instructions, catalog for Industrial hose pump JXHIN-32-CI+Titanium-F-NBR-P, 1.65 m3/h, 1,5 kW, 16 bar, 380V
