Diameter of pump | 4" (100 mm) |
Producer | EDWIN |
Pump capacity, cu.m/hour | 4 |
Feed height, m | 179 |
Power capacity, kW | 2,2 |
Material | AISI 304 stainless steel |
Output pipe diameter | 1 1/4" |
Rate of turn, rpm | 2 850 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 179 |
Shaft material | AISI 304 stainless steel |
Impeller material | POM |
Nom.flow rate, m3/h | 4 |
Housing material | AISI 304 stainless steel |
Max.medium temperature, Celsius degree | 35 |
Serial number of the pump | 4SS |
Country of Origin | China |
PumpType | borehole |
Drive Type | electric |
Diameter of pump | 4" (100 mm) |
Producer | EDWIN |
Pump capacity, cu.m/hour | 4 |
Feed height, m | 179 |
Power capacity, kW | 2,2 |
Material | AISI 304 stainless steel |
Output pipe diameter | 1 1/4" |
Rate of turn, rpm | 2 850 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 179 |
Shaft material | AISI 304 stainless steel |
Impeller material | POM |
Nom.flow rate, m3/h | 4 |
Housing material | AISI 304 stainless steel |
Max.medium temperature, Celsius degree | 35 |
Serial number of the pump | 4SS |
Country of Origin | China |
PumpType | borehole |
Drive Type | electric |

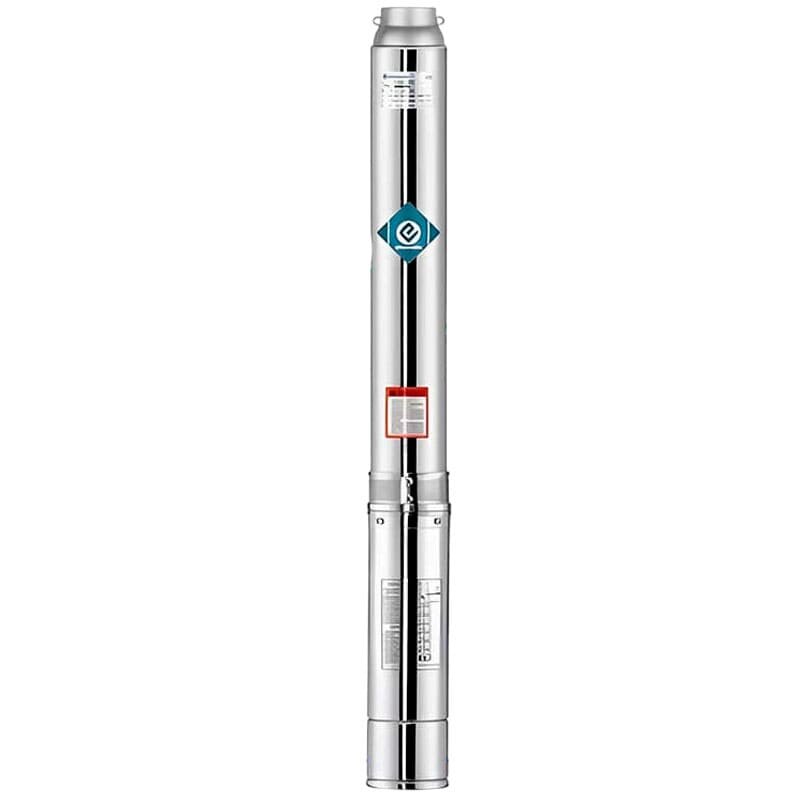

Download instructions, catalog for 4SS4/24 Well Pump, Outlet: 1 1/4 inch, 2.2kW, 380V
