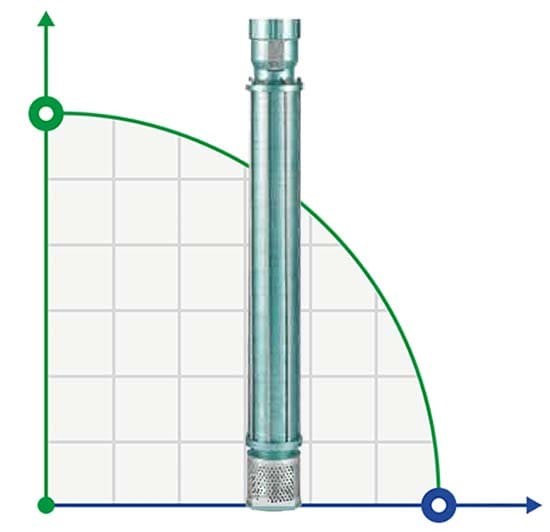

Borehole pump YSP CI 6006/14, 11kW, 380V

Code: 1041373
(0 review)
Diameter of pump6" (150 mm)
ProducerYildizsu
Pump capacity, cu.m/hour30
Feed height, m151
Power capacity, kW11
Output pipe diameter3"
Rate of turn, rpm2 900
ProtectionIP 68
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h30
Max.temperature, C30
Max. head, m151
Length, mm1 190
Nom.flow rate, m3/h20
Nom.head, m126
Housing materialСast iron
Serial number of the pumpYSP CI
Country of OriginTurkey
PumpTypeborehole
Drive Typeelectric
Installation Typevertical
Weight, kg45
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1,800.76 (netto)
Добавить в сравнение
We deliver anywhere in the world
Analog of ECV 6-16-150. YSP CI borehole pumps can be used in difficult environments where high equipment reliability is required. Application: in high-pressure water supply systems; in irrigation and fire extinguishing systems; at water treatment plants; in filtration and desalination of seawater; in industrial cooling and other technological processes. They are also used in the mining industry; in drainage and pumping of water working on the high seas and in the Navy; in fire-fighting equipment, municipal and domestic water supply.
Diameter of pump6" (150 mm)
ProducerYildizsu
Pump capacity, cu.m/hour30
Feed height, m151
Power capacity, kW11
Output pipe diameter3"
Rate of turn, rpm2 900
ProtectionIP 68
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h30
Max.temperature, C30
Max. head, m151
Length, mm1 190
Nom.flow rate, m3/h20
Nom.head, m126
Housing materialСast iron
Serial number of the pumpYSP CI
Country of OriginTurkey
PumpTypeborehole
Drive Typeelectric
Installation Typevertical
Weight, kg45
