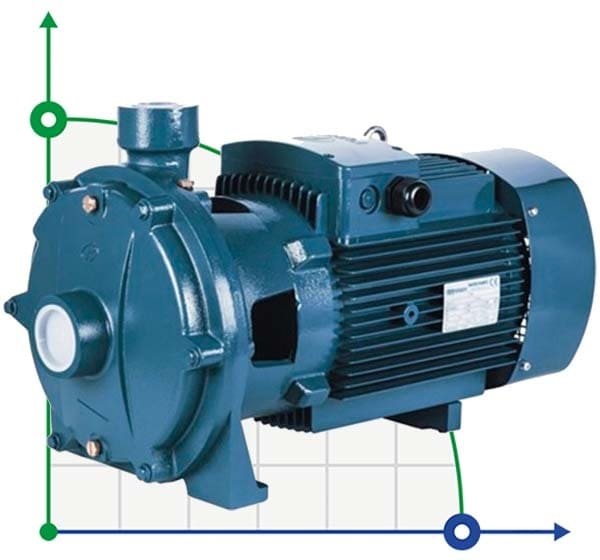

B2C 32-210 (15/94), 5,5kW, 2880 double impeller centrifugal pump
Click image for a larger view
B2C 32-210 (15/94), 5,5kW, 2880 double impeller centrifugal pump
B2C 32-210 (15/94), 5,5kW, 2880 double impeller centrifugal pump
B2C 32-210 (15/94), 5,5kW, 2880 double impeller centrifugal pump
B2C 32-210 (15/94), 5,5kW, 2880 double impeller centrifugal pump
B2C 32-210 (15/94), 5,5kW, 2880 double impeller centrifugal pump

B2C 32-210 (15/94), 5,5kW, 2880 double impeller centrifugal pump

Code: 1029045
(0 review)
ProducerBTS Engineering
Pump capacity, m3/h15
Feed height, m94
Power capacity, kW5,5
Materialcast iron
Input pipe diameter50
Output pipe diameter32
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h15
Max.temperature, C120
Max. head, m94
Volume, m30,068096
SealMechanical Seal, SiC/Carbon/SS304
Impeller materialbrass
Dimensions, mm565х300х352
Pressure, bar20
Serial number of the pumpB2C
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Weight, kg54
Length of transport packing, cm56
Width of transport packing, cm32
Height of transport packing, cm38
Transport packing volume, cbm0,068
Show all features (30)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$853 (netto)
Добавить в сравнение
We deliver anywhere in the world
The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required. Double brass impeller pump in thread port design. Complete range with a full series of double impeller pump. YE3 high efficient motor, with protection IP55 class F. Shaft in stainless steel AISI 304. Quality NSK bearing, wear resistance mechanical seal. Used for any high pressure requirement.
Categories: Centrifugal pumpWater pump
ProducerBTS Engineering
Pump capacity, m3/h15
Feed height, m94
Power capacity, kW5,5
Materialcast iron
Input pipe diameter50
Output pipe diameter32
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h15
Max.temperature, C120
Max. head, m94
Volume, m30,068096
SealMechanical Seal, SiC/Carbon/SS304
Impeller materialbrass
Dimensions, mm565х300х352
Pressure, bar20
Serial number of the pumpB2C
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Weight, kg54
Length of transport packing, cm56
Width of transport packing, cm32
Height of transport packing, cm38
Transport packing volume, cbm0,068

Download instructions, catalog for B2C 32-210 (15/94), 5,5kW, 2880 double impeller centrifugal pump
