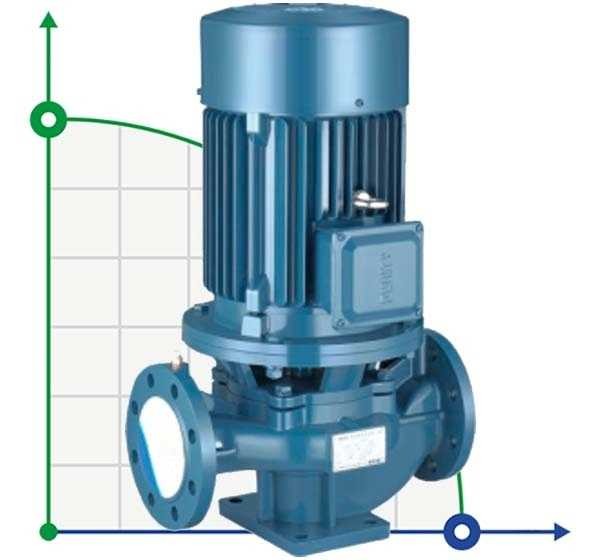

IRG BGL 200-250 (200/20), 18,5kW, 1480 centrifugal vertical pump

Code: 1025656
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour200
Feed height, m20
Power capacity, kW18,5
Materialcast iron
Input pipe diameter200
Output pipe diameter200
Rate of turn, rpm1 480
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Material of flow channelcast iron
Nom.flow rate, m3/h200
Nom.head, m20
Dimensions, mm750x480x960
Serial number of the pumpBGL
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationirrigation systems, irrigation, extinguishing, for systems of water supply, water, cooling tower
Weight, kg305
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$3,267.41 (netto)
Добавить в сравнение
We deliver anywhere in the world
Applications: heat supply, irrigation, cooling and circulation, in central heating and hot water supply systems, fire extinguishing systems, booster systems, water treatment systems, irrigation, hot and cold water supply in heating, cooling and air conditioning systems, for boiler power supply due to reliable design pumps, pumping clean liquids that do not contain abrasive impurities and are not aggressive to the materials from which the pump is made. The pump is ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. If it is planned to pump a liquid, the density and / or viscosity of which differs from the same parameters of water, then due to changes in hydraulic power, it is necessary to take into account the required power of the motor in this case. Analogs: WILO IL, GRUNDFOS TP, Sprut 3VP, Calpeda NR / NRM, DAB ALM-ALP, ALME-ALPE, CM-DCM, CP-DCP, KLM-KLP- DKLM-DKLP, KLME-KLPE-DKLME-D
ProducerBTS Engineering
Pump capacity, cu.m/hour200
Feed height, m20
Power capacity, kW18,5
Materialcast iron
Input pipe diameter200
Output pipe diameter200
Rate of turn, rpm1 480
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Material of flow channelcast iron
Nom.flow rate, m3/h200
Nom.head, m20
Dimensions, mm750x480x960
Serial number of the pumpBGL
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationirrigation systems, irrigation, extinguishing, for systems of water supply, water, cooling tower
Weight, kg305
