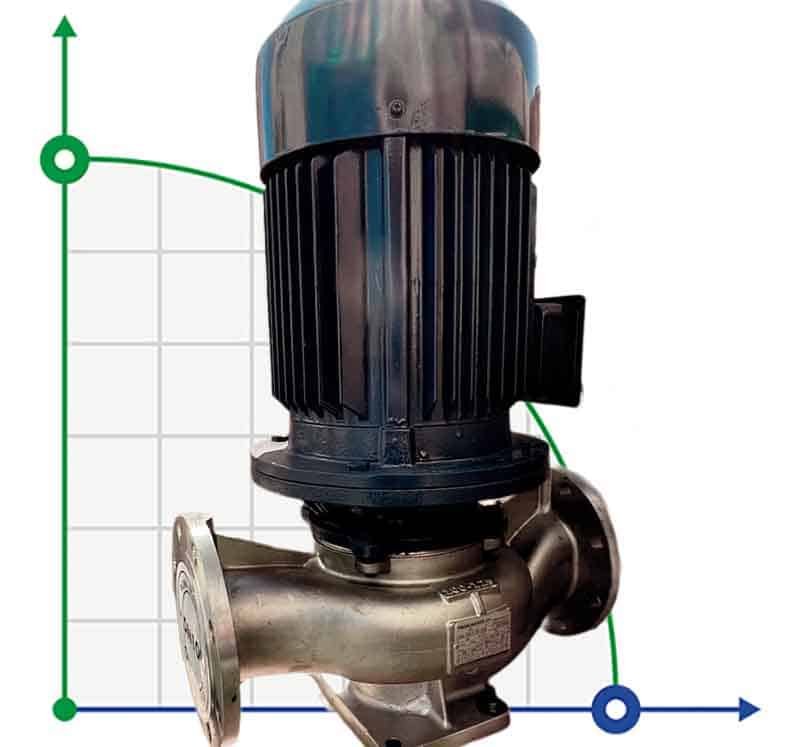

IHG BGLH 65-200(I)A (47/44), 11kW, 2880 Stainless Steel Vertical Pump
Click image for a larger view
IHG BGLH 65-200(I)A (47/44), 11kW, 2880 Stainless Steel Vertical Pump
IHG BGLH 65-200(I)A (47/44), 11kW, 2880 Stainless Steel Vertical Pump
IHG BGLH 65-200(I)A (47/44), 11kW, 2880 Stainless Steel Vertical Pump

IHG BGLH 65-200(I)A (47/44), 11kW, 2880 Stainless Steel Vertical Pump

Code: 1023917
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour47
Feed height, m44
Power capacity, kW11
MaterialAISI 304 stainless steel
Input pipe diameter65
Output pipe diameter65
Rate of turn, rpm2 880
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
SealMechanical Seal, Carbon-SiC-NBR
Nom.flow rate, m3/h47
Nom.head, m44
Dimensions, mm450x430x800
Serial number of the pumpBGLH
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg166
Show all features (26)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$2,735.45 (netto)
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps made of stainless steel AISI 304, (housing, shaft, impeller) are designed for pumping food products: juice, milk, dairy products, beer, alcohol, saline solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.
Categories: Centrifugal pumpPump for CIP-washing of the distillation columnPump for aggressive liquidPumps for distillation columnMash pumpWine PumpPump for water supplyPump for CASCaustic pumpPump for beer and beer wortFood PumpAlkali Pump
ProducerBTS Engineering
Pump capacity, cu.m/hour47
Feed height, m44
Power capacity, kW11
MaterialAISI 304 stainless steel
Input pipe diameter65
Output pipe diameter65
Rate of turn, rpm2 880
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
SealMechanical Seal, Carbon-SiC-NBR
Nom.flow rate, m3/h47
Nom.head, m44
Dimensions, mm450x430x800
Serial number of the pumpBGLH
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg166
