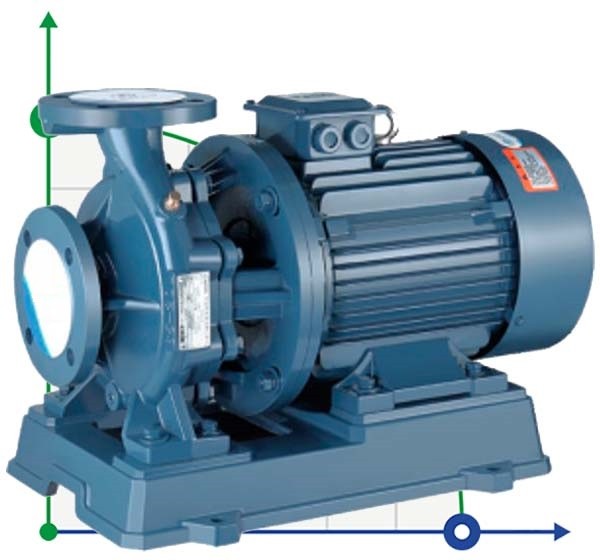

BGW 150-315 (200/32), 30kW, 1480 centrifugal horizontal pump
Click image for a larger view
BGW 150-315 (200/32), 30kW, 1480 centrifugal horizontal pump
BGW 150-315 (200/32), 30kW, 1480 centrifugal horizontal pump
BGW 150-315 (200/32), 30kW, 1480 centrifugal horizontal pump

BGW 150-315 (200/32), 30kW, 1480 centrifugal horizontal pump

Code: 1026539
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour200
Feed height, m32
Power capacity, kW30
Materialcast iron
Input pipe diameter150
Output pipe diameter150
Rate of turn, rpm1 480
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Material of flow channelcast iron
SealMechanical Seal, Carbon-SiC-NBR
Nom.flow rate, m3/h200
Nom.head, m32
Dimensions, mm760x530x1080
Serial number of the pumpBGW
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationirrigation systems, irrigation, extinguishing, for systems of water supply, water, cooling tower
Weight, kg410
Show all features (26)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$3,821.77 (netto)
Добавить в сравнение
We deliver anywhere in the world
BGW series pumps are used for: - fire extinguishing systems; - municipal water supply; - technical water supply systems; - air conditioning and heating systems; - liquid cooling systems; - washing, filtration and cleaning systems; - use in swimming pools; - fountain installations; - watering and irrigation of fields.
Categories: Centrifugal pumpMash pumpPump for water supply
ProducerBTS Engineering
Pump capacity, cu.m/hour200
Feed height, m32
Power capacity, kW30
Materialcast iron
Input pipe diameter150
Output pipe diameter150
Rate of turn, rpm1 480
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Material of flow channelcast iron
SealMechanical Seal, Carbon-SiC-NBR
Nom.flow rate, m3/h200
Nom.head, m32
Dimensions, mm760x530x1080
Serial number of the pumpBGW
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationirrigation systems, irrigation, extinguishing, for systems of water supply, water, cooling tower
Weight, kg410

Download instructions, catalog for BGW 150-315 (200/32), 30kW, 1480 centrifugal horizontal pump
