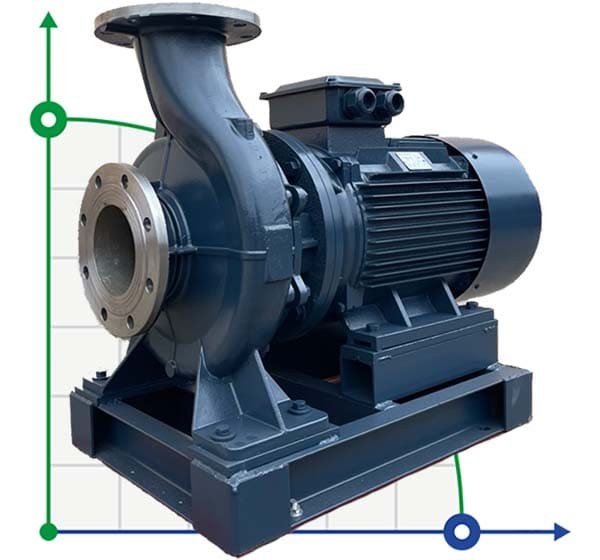

BGWH 25-160 (4/32), 1,5kW, 2880 Stainless Steel Horizontal Pump
Click image for a larger view
BGWH 25-160 (4/32), 1,5kW, 2880 Stainless Steel Horizontal Pump
BGWH 25-160 (4/32), 1,5kW, 2880 Stainless Steel Horizontal Pump
BGWH 25-160 (4/32), 1,5kW, 2880 Stainless Steel Horizontal Pump
BGWH 25-160 (4/32), 1,5kW, 2880 Stainless Steel Horizontal Pump
BGWH 25-160 (4/32), 1,5kW, 2880 Stainless Steel Horizontal Pump
More +2

BGWH 25-160 (4/32), 1,5kW, 2880 Stainless Steel Horizontal Pump

Code: 1024106
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour4
Feed height, m32
Power capacity, kW1,5
MaterialAISI 304 stainless steel
Input pipe diameter25
Output pipe diameter25
Rate of turn, rpm2 880
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Nom.flow rate, m3/h4
Nom.head, m32
Dimensions, mm30x270x430
Serial number of the pumpBGWH
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg39
Show all features (25)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$980.10 (netto)
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps made of stainless steel AISI 304, (housing, shaft, impeller) are designed for pumping food products: juice, milk, dairy products, beer, alcohol, saline solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.
Categories: Centrifugal pumpPump for CIP-washing of the distillation columnPump for aggressive liquidPumps for distillation columnMash pumpPump for water supplyPump for CASCaustic pumpPump for beer and beer wortFood PumpAlkali Pump
ProducerBTS Engineering
Pump capacity, cu.m/hour4
Feed height, m32
Power capacity, kW1,5
MaterialAISI 304 stainless steel
Input pipe diameter25
Output pipe diameter25
Rate of turn, rpm2 880
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Nom.flow rate, m3/h4
Nom.head, m32
Dimensions, mm30x270x430
Serial number of the pumpBGWH
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg39

Download instructions, catalog for BGWH 25-160 (4/32), 1,5kW, 2880 Stainless Steel Horizontal Pump
