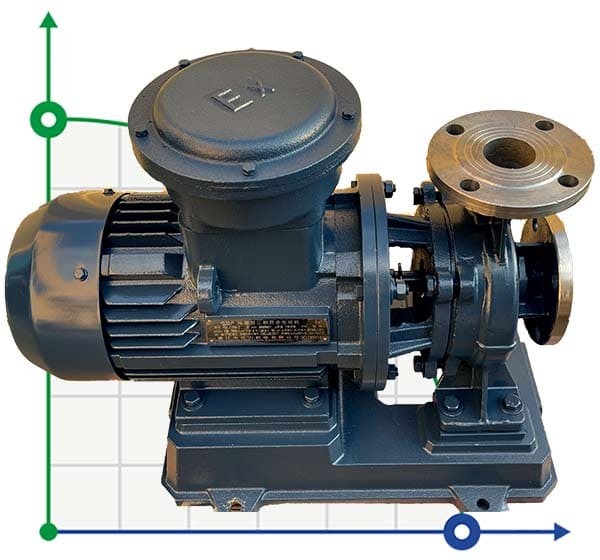

BGWHB 300-400B (563/38), 90kW, 1480, Ex Stainless Steel Horizontal Pump
Click image for a larger view
BGWHB 300-400B (563/38), 90kW, 1480, Ex Stainless Steel Horizontal Pump
BGWHB 300-400B (563/38), 90kW, 1480, Ex Stainless Steel Horizontal Pump
BGWHB 300-400B (563/38), 90kW, 1480, Ex Stainless Steel Horizontal Pump
BGWHB 300-400B (563/38), 90kW, 1480, Ex Stainless Steel Horizontal Pump
BGWHB 300-400B (563/38), 90kW, 1480, Ex Stainless Steel Horizontal Pump
More +2

BGWHB 300-400B (563/38), 90kW, 1480, Ex Stainless Steel Horizontal Pump

Code: 1024926
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour563
Feed height, m38
Power capacity, kW90
MaterialAISI 304 stainless steel
Input pipe diameter300
Output pipe diameter300
Rate of turn, rpm1 480
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Nom.flow rate, m3/h563
Nom.head, m38
Dimensions, mm1500x670x1700
Serial number of the pumpBGWHB
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg1 320
Show all features (25)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$26,766.74 (netto)
Добавить в сравнение
We deliver anywhere in the world
BGWHB series pumps with Ex motor (explosion-proof version) ATEX is an abbreviation that stands for "ATmosphères EXplosibles" (French for "explosive atmospheres"). For pumping chemically aggressive liquids, saline solutions, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing equipment. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.
Categories: Centrifugal pumpPump for CIP-washing of the distillation columnPump for aggressive liquidPumps for distillation columnMash pumpPump for water supplyPump for CASCaustic pumpSolvent PumpAlcohol PumpPump for alcohol, gasoline, diesel fuel, keroseneAlkali Pump
ProducerBTS Engineering
Pump capacity, cu.m/hour563
Feed height, m38
Power capacity, kW90
MaterialAISI 304 stainless steel
Input pipe diameter300
Output pipe diameter300
Rate of turn, rpm1 480
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Nom.flow rate, m3/h563
Nom.head, m38
Dimensions, mm1500x670x1700
Serial number of the pumpBGWHB
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg1 320
