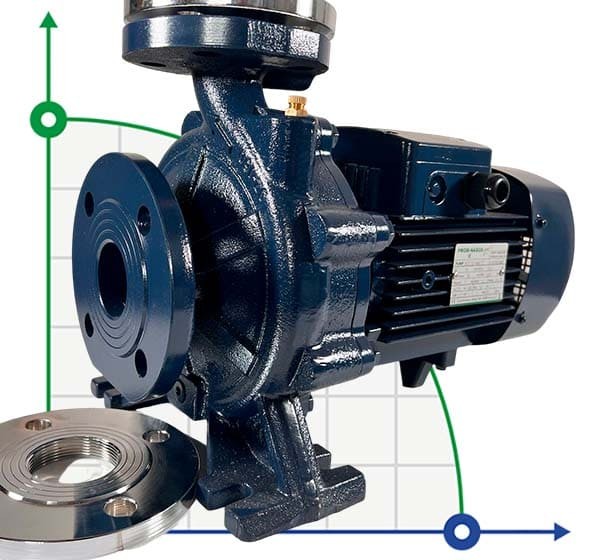

Monoblock centrifugal pump BST 80-200/30, 3000
Click image for a larger view
Monoblock centrifugal pump BST 80-200/30, 3000
Monoblock centrifugal pump BST 80-200/30, 3000
Monoblock centrifugal pump BST 80-200/30, 3000
Monoblock centrifugal pump BST 80-200/30, 3000
Monoblock centrifugal pump BST 80-200/30, 3000
More +5

Monoblock centrifugal pump BST 80-200/30, 3000

Code: 1019089
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour160
Feed height, m50
Power capacity, kW30
Materialcast iron
Input pipe diameter100
Output pipe diameter80
Rate of turn, rpm3 000
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h160
Nom.head, m50
Housing materialСast iron
Serial number of the pumpBST
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationcoolant, detergents, process fluids, heating systems, non-corrosive liquids, tosol, antifreeze, glycerol, water, increasing pressure, brake fluids
Analogue forEbara 3D, Speroni CFM, Speroni MEM, Speroni CS, Pedrollo HF, CALPEDA NM
Weight, kg220
Length of transport packing, cm92
Width of transport packing, cm43
Height of transport packing, cm66
Height of transport volume, cbm0,261
Show all features (31)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$3,121.02 (netto)
Добавить в сравнение
We deliver anywhere in the world
BST monobloc pump. Purpose: heating systems, water systems, pressure systems, non-aggressive fluids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, coolants, drilling mixtures, liquid mixtures, solvents. Analogs: Calpeda NM, Pedrollo H/ HF, Ebara 3D. Speroni CFM / mem / CS. The pump is used to work with non-aggressive liquids that are not chemically aggressive to the pump body. The impeller is made of cast iron.
Categories: Centrifugal pumpPump for water supplyWater pumpPump for heating systems
ProducerBTS Engineering
Pump capacity, cu.m/hour160
Feed height, m50
Power capacity, kW30
Materialcast iron
Input pipe diameter100
Output pipe diameter80
Rate of turn, rpm3 000
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h160
Nom.head, m50
Housing materialСast iron
Serial number of the pumpBST
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationcoolant, detergents, process fluids, heating systems, non-corrosive liquids, tosol, antifreeze, glycerol, water, increasing pressure, brake fluids
Analogue forEbara 3D, Speroni CFM, Speroni MEM, Speroni CS, Pedrollo HF, CALPEDA NM
Weight, kg220
Length of transport packing, cm92
Width of transport packing, cm43
Height of transport packing, cm66
Height of transport volume, cbm0,261
