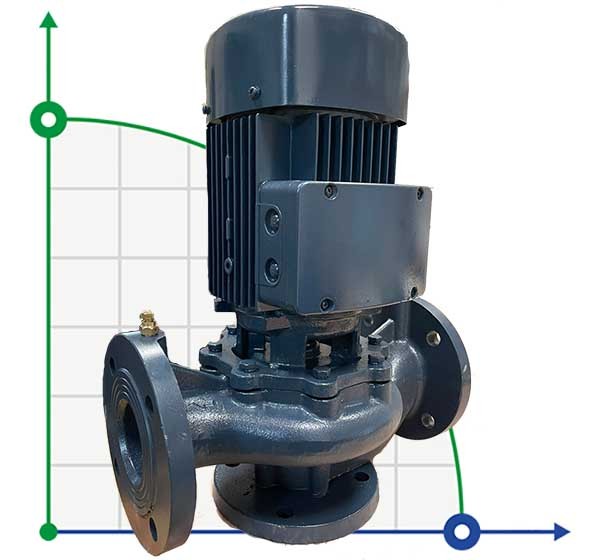

BT 50-460/5,5 pump in-line
Click image for a larger view
BT 50-460/5,5 pump in-line
BT 50-460/5,5 pump in-line
BT 50-460/5,5 pump in-line
BT 50-460/5,5 pump in-line
BT 50-460/5,5 pump in-line
More +3

BT 50-460/5,5 pump in-line

Code: 1019186
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour42
Feed height, m46
Power capacity, kW5,5
Materialcast iron
Input pipe diameterDN50
Output pipe diameterDN50
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h42
Max.temperature, C120
Max. head, m46
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialAISI 304 stainless steel
Serial number of the pumpBT
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationcirculation, boiler, hot water, coolant, ethylene glycol, water recycling, increasing pressure, air conditioning systems, heating, DHW, drying, glycol, water, cooling, cooling tower, hot water, ice water, the drying chamber, water, water supply, glaze
Analogue forKOLMEKS
Weight, kg66
Height of transport volume, cbm0,077
Show all features (26)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1,214.07 (netto)
Добавить в сравнение
We deliver anywhere in the world
PT Vertical Inline Pump Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The vertical inline pumps are recommended for use in water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural. TECHNICAL DESCRIPTION: - New vertical inline pump - Original design by PURITY (patented) - Both square motor & round motor available - YE3 high efficient motor, with protection IP55 class F - Pump case with anti-corrosive coating - Impeller in stainless steel AISI 304 or cast iron - Shaft in stainless steel AISI 304 or galvanized iron - Galvanized counter flange with bolts, nuts and gaskets - Quality NSK bearing, wear resistance mechanical seal Liquid temperature between -10℃ and +120℃ Ambient temperature up to +50℃ Max. working pressure 16 bar
Categories: Centrifugal pumpPump for water supplyPump for heating systemsWood Drying Pump
ProducerBTS Engineering
Pump capacity, cu.m/hour42
Feed height, m46
Power capacity, kW5,5
Materialcast iron
Input pipe diameterDN50
Output pipe diameterDN50
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h42
Max.temperature, C120
Max. head, m46
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialAISI 304 stainless steel
Serial number of the pumpBT
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationcirculation, boiler, hot water, coolant, ethylene glycol, water recycling, increasing pressure, air conditioning systems, heating, DHW, drying, glycol, water, cooling, cooling tower, hot water, ice water, the drying chamber, water, water supply, glaze
Analogue forKOLMEKS
Weight, kg66
Height of transport volume, cbm0,077
