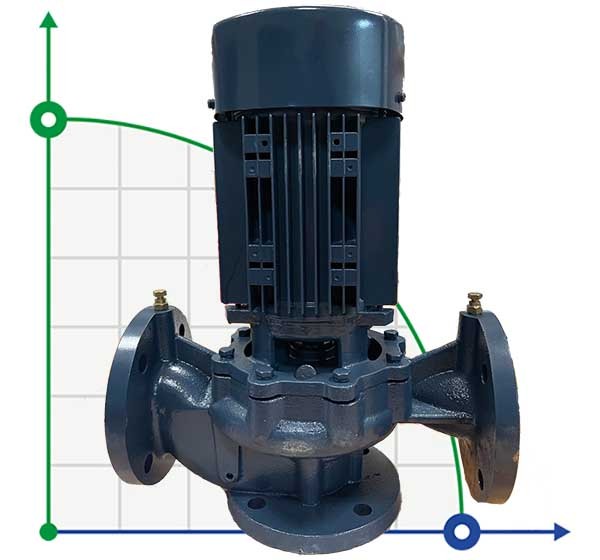

BT 65-310/3 pump in-line

Product list

Home
Industrial pumps
Centrifugal pump
BT 65-310/3 pump in-line

Click image for a larger view

More +3

Code: 1019191

(0 review)

Producer	BTS Engineering
Pump capacity, cu.m/hour	42
Feed height, m	31
Power capacity, kW	3
Material	cast iron
Input pipe diameter	DN65
Output pipe diameter	DN65
Rate of turn, rpm	2 900
Protection	IP55
Power supply	3х380 V, 50 Hz
Max.flow rate, m3/h	42
Max.temperature, C	120
Max. head, m	31
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	cast iron
Serial number of the pump	BT
Country of Origin	China
PumpType	in-line
Drive Type	electric
Installation Type	vertical
Type of configuration	with engine
Warranty, months	12
Application	circulation, boiler, hot water, coolant, ethylene glycol, water recycling, increasing pressure, air conditioning systems, heating, DHW, drying, glycol, cooling, water, cooling tower, hot water, ice water, the drying chamber, water, water supply, glaze
Analogue for	KOLMEKS
Weight, kg	48
Height of transport volume, cbm	0,069

Show all features (26)

Documentation

Description BT 65-310/3 pump in-line

Stainless steel standard pump BZ Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications. Suitable for use with clean, aggressive liquids that are chemically compatible with the materials from which the pump is made. The pumps must be installed in enclosed places, or at least protected against inclement weather. TECHNICAL DESCRIPTION - New stainless steel standard pump - Original design by PURITY - Both square motor & round motor available - YE3 high efficient motor, with protection IP55 class F - Pump case in stainless steel AISI 304 - Impeller in stainless steel AISI 304 - Shaft in stainless steel AISI 304 - Quality NSK bearing, wear resistance mechanical seal Liquid temperature between -10℃ and +120℃ Ambient temperature up to +50℃ Max. working pressure 16 bar Continuous service S1

Features BT 65-310/3 pump in-line

Producer	BTS Engineering
Pump capacity, cu.m/hour	42
Feed height, m	31
Power capacity, kW	3
Material	cast iron
Input pipe diameter	DN65
Output pipe diameter	DN65
Rate of turn, rpm	2 900
Protection	IP55
Power supply	3х380 V, 50 Hz
Max.flow rate, m3/h	42
Max.temperature, C	120
Max. head, m	31
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	cast iron
Serial number of the pump	BT
Country of Origin	China
PumpType	in-line
Drive Type	electric
Installation Type	vertical
Type of configuration	with engine
Warranty, months	12
Application	circulation, boiler, hot water, coolant, ethylene glycol, water recycling, increasing pressure, air conditioning systems, heating, DHW, drying, glycol, cooling, water, cooling tower, hot water, ice water, the drying chamber, water, water supply, glaze
Analogue for	KOLMEKS
Weight, kg	48
Height of transport volume, cbm	0,069
