Frequency control | no |
Producer | EDWIN |
Pump capacity, cu.m/hour | 23.1 |
Feed height, m | 20 |
Power capacity, kW | 1,1 |
Input pipe diameter | 2" |
Output pipe diameter | 2" |
Power supply | 3х380 V, 50 Hz |
Max.flow rate, m3/h | 23.1 |
Max. head, m | 20 |
Shaft material | Steel |
Impeller material | AISI |
Max.medium temperature, Celsius degree | 110 |
Bearing Material | Steel |
Serial number of the pump | HGR |
Country of Origin | China |
PumpType | with wet rotor |
Drive Type | electric |
Weight, kg | 27 |
Frequency control | no |
Producer | EDWIN |
Pump capacity, cu.m/hour | 23.1 |
Feed height, m | 20 |
Power capacity, kW | 1,1 |
Input pipe diameter | 2" |
Output pipe diameter | 2" |
Power supply | 3х380 V, 50 Hz |
Max.flow rate, m3/h | 23.1 |
Max. head, m | 20 |
Shaft material | Steel |
Impeller material | AISI |
Max.medium temperature, Celsius degree | 110 |
Bearing Material | Steel |
Serial number of the pump | HGR |
Country of Origin | China |
PumpType | with wet rotor |
Drive Type | electric |
Weight, kg | 27 |

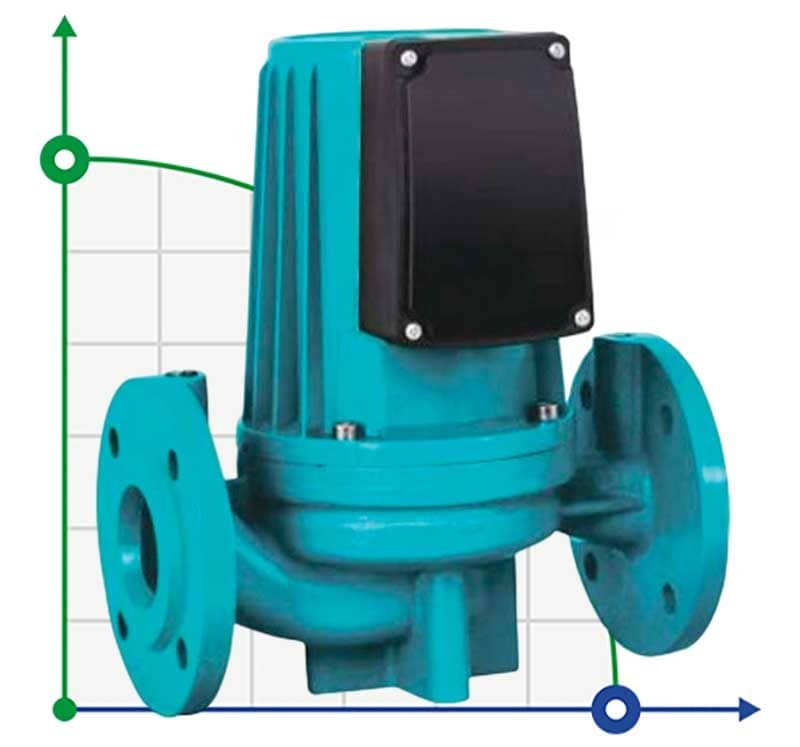

Download instructions, catalog for Drying chamber circulation pump HGR1100-DN50, 380V with wet rotor
