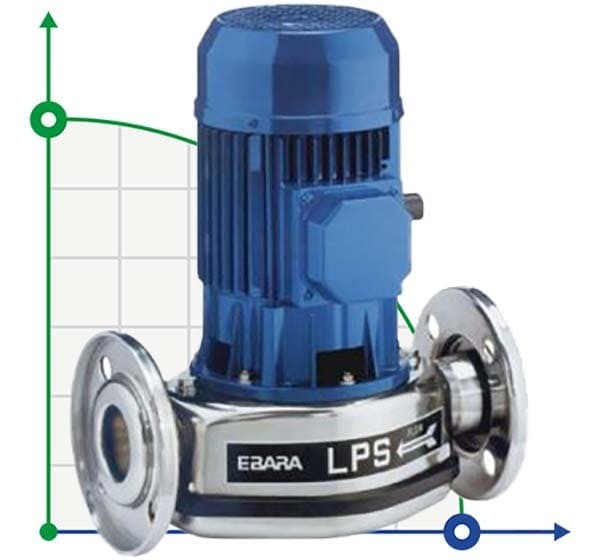

Circulation pump Ebara LPS/I 40/25, 380V

Code: 1964030004I
(0 review)
ProducerEbara
Pump capacity, cu.m/hour12
Feed height, m7.9
Power capacity, kW0,25
MaterialAISI 304 stainless steel
Input pipe diameter40
Output pipe diameter40
Rate of turn, rpm2 800
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h12
Max.temperature, C100
Max. head, m7.9
SealMechanical Seal, Carbon/Ceramic/NBR
Shaft materialAISI 303
Impeller materialAISI 304 stainless steel
Housing materialAISI 304 stainless steel
Serial number of the pumpLPS
Country of OriginItaly
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Weight, kg11,8
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$933.06 (netto)
Добавить в сравнение
We deliver anywhere in the world
Ebara LPs series circulation pumps are made of Aisi 304 stainless steel. Application: hot and cold water circulation; washing systems; irrigation of plants; pumping of moderately aggressive liquids; air conditioning systems; heating systems; top dressing of plants; equipment for industrial painting. Technical features: robust construction; low noise in operation; compact dimensions; made of Aisi 304 stainless steel. Technical data: capacity up to 25 m3/h; supply height up to 21 m; temperature of the pumped liquid: -10°C ÷ 100°C; maximum pressure: 0.4 MPA.
ProducerEbara
Pump capacity, cu.m/hour12
Feed height, m7.9
Power capacity, kW0,25
MaterialAISI 304 stainless steel
Input pipe diameter40
Output pipe diameter40
Rate of turn, rpm2 800
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h12
Max.temperature, C100
Max. head, m7.9
SealMechanical Seal, Carbon/Ceramic/NBR
Shaft materialAISI 303
Impeller materialAISI 304 stainless steel
Housing materialAISI 304 stainless steel
Serial number of the pumpLPS
Country of OriginItaly
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Weight, kg11,8
