Pump for water supply BS 100-200/370 (200/45), 37kW, 2900 without motor

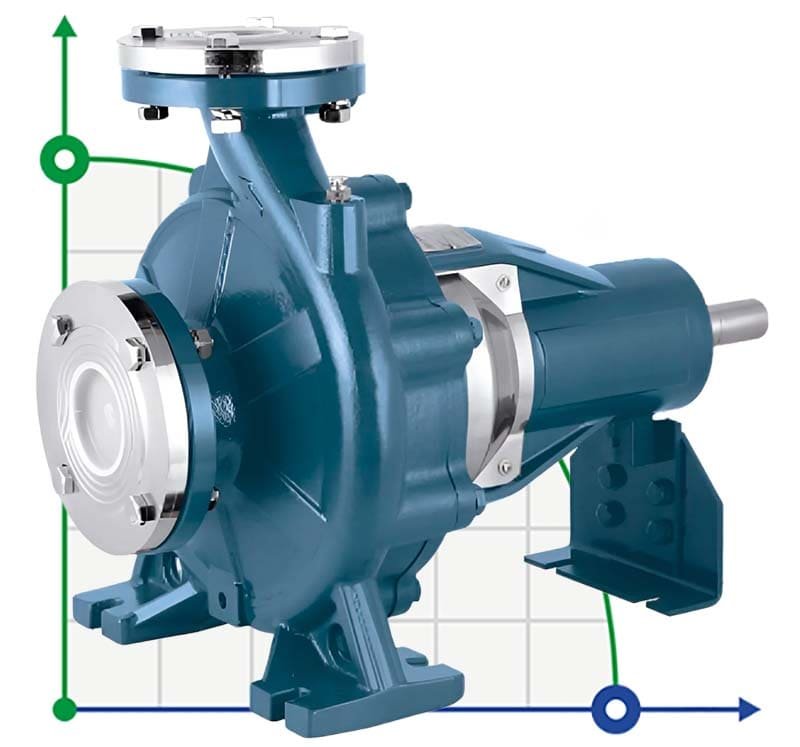

Click image for a larger view
Pump for water supply BS 100-200/370 (200/45), 37kW, 2900 without motor
Pump for water supply BS 100-200/370 (200/45), 37kW, 2900 without motor
Pump for water supply BS 100-200/370 (200/45), 37kW, 2900 without motor
Pump for water supply BS 100-200/370 (200/45), 37kW, 2900 without motor
Pump for water supply BS 100-200/370 (200/45), 37kW, 2900 without motor

Pump for water supply BS 100-200/370 (200/45), 37kW, 2900 without motor

Code: 1045066
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour300
Feed height, m55
Power capacity, kW37
Materialcast iron
Input pipe diameterDN125
Output pipe diameterDN100
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h300
Nom.pressure, Mpa2
Max.temperature, C120
Max. head, m55
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h200
Nom.head, m45
Impeller diameter, mm208
Serial number of the pumpBS
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationheating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, water recycling, circulation
Weight, kg75
Length of transport packing, cm66
Width of transport packing, cm38
Height of transport packing, cm54
Height of transport volume, cbm0,135
Show all features (33)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$942.62 (netto)
Добавить в сравнение
We deliver anywhere in the world
The pumping part of the BS series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
Category: Centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour300
Feed height, m55
Power capacity, kW37
Materialcast iron
Input pipe diameterDN125
Output pipe diameterDN100
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h300
Nom.pressure, Mpa2
Max.temperature, C120
Max. head, m55
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h200
Nom.head, m45
Impeller diameter, mm208
Serial number of the pumpBS
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationheating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, water recycling, circulation
Weight, kg75
Length of transport packing, cm66
Width of transport packing, cm38
Height of transport packing, cm54
Height of transport volume, cbm0,135

Download instructions, catalog for Pump for water supply BS 100-200/370 (200/45), 37kW, 2900 without motor
