Producer | BTS Engineering |
Pump capacity, cu.m/hour | 24 |
Feed height, m | 31 |
Power capacity, kW | 2,2 |
Material | cast iron |
Input pipe diameter | DN50 |
Output pipe diameter | DN32 |
Rate of turn, rpm | 2 900 |
Protection | IP55 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Max.flow rate, m3/h | 24 |
Nom.pressure, Mpa | 2 |
Max.temperature, C | 120 |
Max. head, m | 31 |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Impeller material | AISI 304 stainless steel |
Nom.flow rate, m3/h | 15 |
Nom.head, m | 24.5 |
Impeller diameter, mm | 158 |
Serial number of the pump | BS |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | without engine |
Warranty, months | 12 |
Application | the drying chamber, heating, drying, cooling tower, ice water, glaze, water, increasing pressure, water recycling, circulation |
Weight, kg | 31 |
Height of transport volume, cbm | 0,035 |
Producer | BTS Engineering |
Pump capacity, cu.m/hour | 24 |
Feed height, m | 31 |
Power capacity, kW | 2,2 |
Material | cast iron |
Input pipe diameter | DN50 |
Output pipe diameter | DN32 |
Rate of turn, rpm | 2 900 |
Protection | IP55 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Max.flow rate, m3/h | 24 |
Nom.pressure, Mpa | 2 |
Max.temperature, C | 120 |
Max. head, m | 31 |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Impeller material | AISI 304 stainless steel |
Nom.flow rate, m3/h | 15 |
Nom.head, m | 24.5 |
Impeller diameter, mm | 158 |
Serial number of the pump | BS |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | without engine |
Warranty, months | 12 |
Application | the drying chamber, heating, drying, cooling tower, ice water, glaze, water, increasing pressure, water recycling, circulation |
Weight, kg | 31 |
Height of transport volume, cbm | 0,035 |

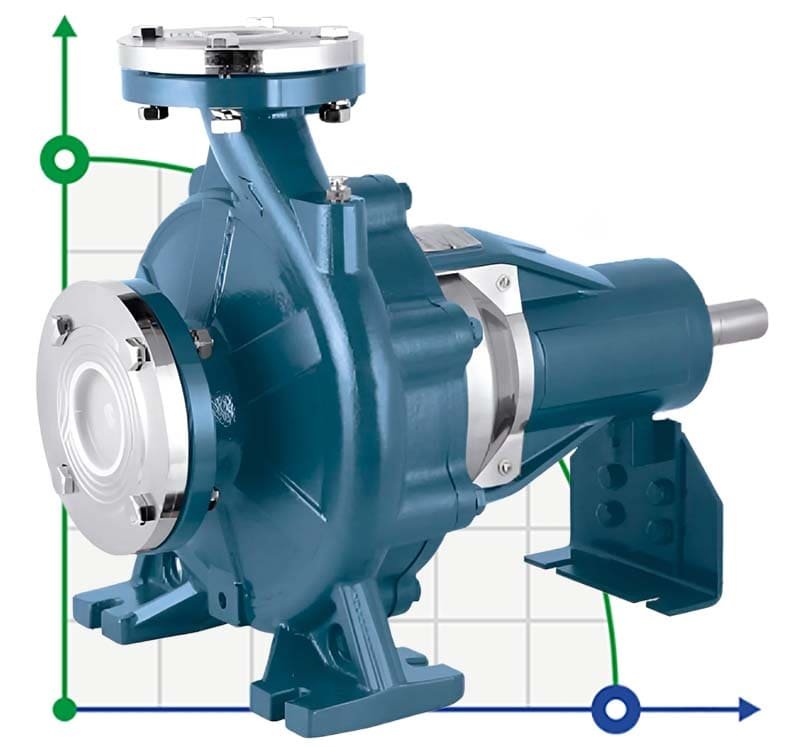

Download instructions, catalog for Circulating console pump BS 32-160/22 (15/24.5), 2.2kW, 2900 without motor
