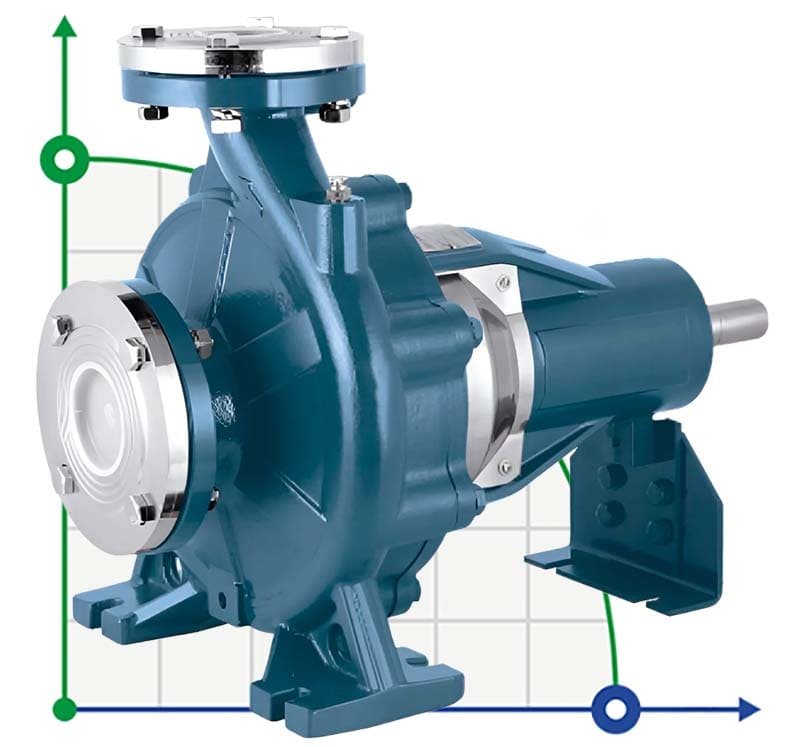

Console pump for water supply BS 32-200/40 (15/45.5), 4kW, 2900 without motor
Click image for a larger view
Console pump for water supply BS 32-200/40 (15/45.5), 4kW, 2900 without motor
Console pump for water supply BS 32-200/40 (15/45.5), 4kW, 2900 without motor
Console pump for water supply BS 32-200/40 (15/45.5), 4kW, 2900 without motor
Console pump for water supply BS 32-200/40 (15/45.5), 4kW, 2900 without motor
Console pump for water supply BS 32-200/40 (15/45.5), 4kW, 2900 without motor

Console pump for water supply BS 32-200/40 (15/45.5), 4kW, 2900 without motor

Code: 1044991
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour27
Feed height, m54.5
Power capacity, kW4
Materialcast iron
Input pipe diameterDN50
Output pipe diameterDN32
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h27
Nom.pressure, Mpa2
Max.temperature, C120
Max. head, m54.5
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h15
Nom.head, m45.5
Impeller diameter, mm204
Serial number of the pumpBS
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationthe drying chamber, heating, drying, cooling tower, ice water, glaze, water, increasing pressure, water recycling, circulation
Weight, kg35
Length of transport packing, cm46
Width of transport packing, cm26
Height of transport packing, cm36
Height of transport volume, cbm0,043
Show all features (33)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$487.58 (netto)
Добавить в сравнение
We deliver anywhere in the world
The pumping part of the BS series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
Category: Centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour27
Feed height, m54.5
Power capacity, kW4
Materialcast iron
Input pipe diameterDN50
Output pipe diameterDN32
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h27
Nom.pressure, Mpa2
Max.temperature, C120
Max. head, m54.5
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h15
Nom.head, m45.5
Impeller diameter, mm204
Serial number of the pumpBS
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationthe drying chamber, heating, drying, cooling tower, ice water, glaze, water, increasing pressure, water recycling, circulation
Weight, kg35
Length of transport packing, cm46
Width of transport packing, cm26
Height of transport packing, cm36
Height of transport volume, cbm0,043

Download instructions, catalog for Console pump for water supply BS 32-200/40 (15/45.5), 4kW, 2900 without motor
