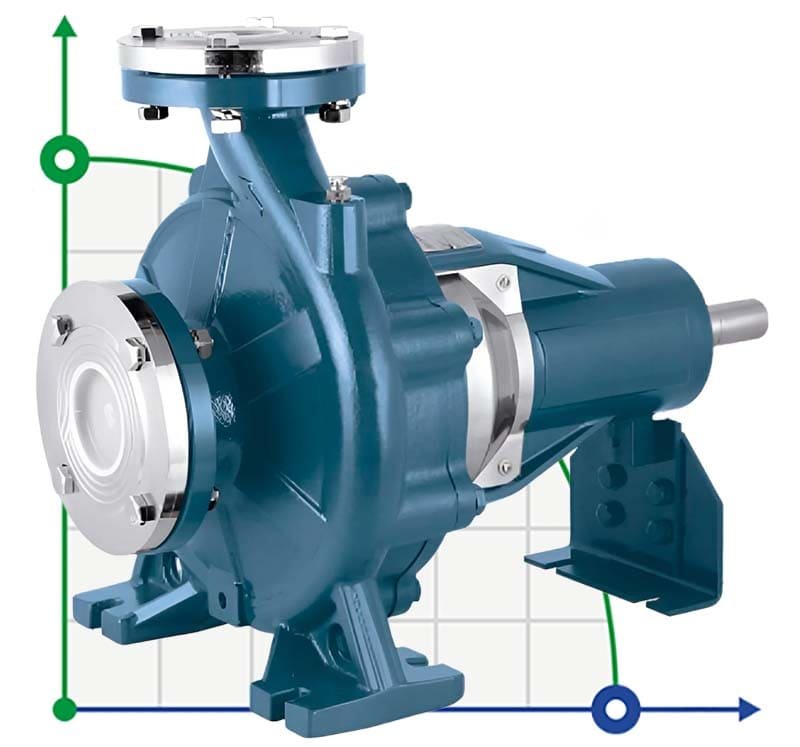

Cantilever pump for circulation BS 32-250/92 (15/72), 9.2kW, 2900 without motor
Click image for a larger view
Cantilever pump for circulation BS 32-250/92 (15/72), 9.2kW, 2900 without motor
Cantilever pump for circulation BS 32-250/92 (15/72), 9.2kW, 2900 without motor
Cantilever pump for circulation BS 32-250/92 (15/72), 9.2kW, 2900 without motor
Cantilever pump for circulation BS 32-250/92 (15/72), 9.2kW, 2900 without motor
Cantilever pump for circulation BS 32-250/92 (15/72), 9.2kW, 2900 without motor

Cantilever pump for circulation BS 32-250/92 (15/72), 9.2kW, 2900 without motor

Code: 1044994
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour24
Feed height, m75
Power capacity, kW9,2
Materialcast iron
Input pipe diameterDN50
Output pipe diameterDN32
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h24
Nom.pressure, Mpa2
Max.temperature, C120
Max. head, m75
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h15
Nom.head, m72
Impeller diameter, mm237
Serial number of the pumpBS
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationheating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, water recycling, circulation
Weight, kg55
Length of transport packing, cm46
Width of transport packing, cm32
Height of transport packing, cm46
Height of transport volume, cbm0,068
Show all features (33)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$535.99 (netto)
Добавить в сравнение
We deliver anywhere in the world
The pumping part of the BS series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
Category: Centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour24
Feed height, m75
Power capacity, kW9,2
Materialcast iron
Input pipe diameterDN50
Output pipe diameterDN32
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h24
Nom.pressure, Mpa2
Max.temperature, C120
Max. head, m75
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h15
Nom.head, m72
Impeller diameter, mm237
Serial number of the pumpBS
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationheating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, water recycling, circulation
Weight, kg55
Length of transport packing, cm46
Width of transport packing, cm32
Height of transport packing, cm46
Height of transport volume, cbm0,068

Download instructions, catalog for Cantilever pump for circulation BS 32-250/92 (15/72), 9.2kW, 2900 without motor
