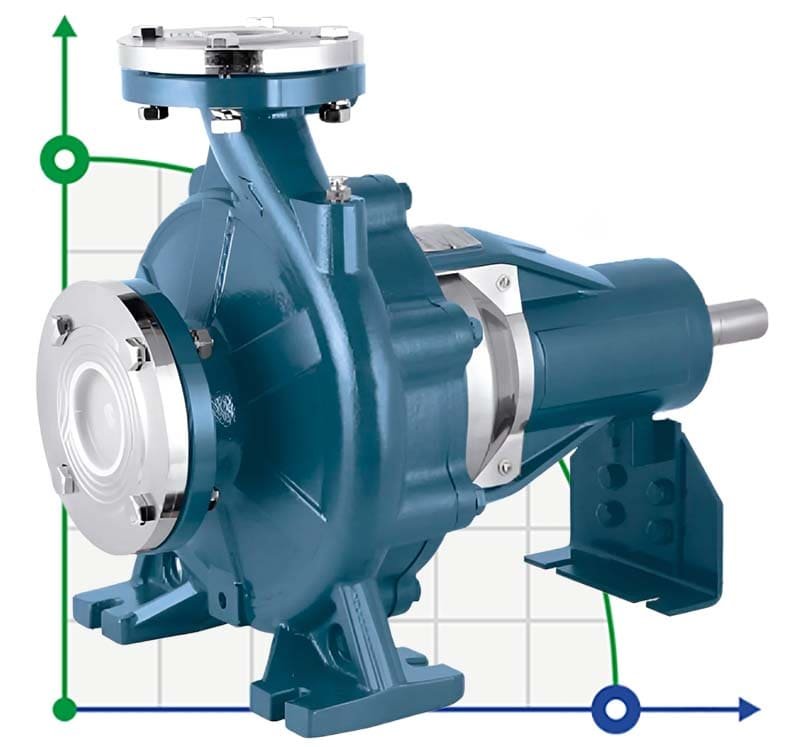

Air conditioning pump BS4 65-315/110 (72/30.2), 11kW, 1450 without motor
Click image for a larger view
Air conditioning pump BS4 65-315/110 (72/30.2), 11kW, 1450 without motor
Air conditioning pump BS4 65-315/110 (72/30.2), 11kW, 1450 without motor
Air conditioning pump BS4 65-315/110 (72/30.2), 11kW, 1450 without motor
Air conditioning pump BS4 65-315/110 (72/30.2), 11kW, 1450 without motor
Air conditioning pump BS4 65-315/110 (72/30.2), 11kW, 1450 without motor

Air conditioning pump BS4 65-315/110 (72/30.2), 11kW, 1450 without motor

Code: 1045117
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour108
Feed height, m34.8
Power capacity, kW11
Materialcast iron
Input pipe diameterDN80
Output pipe diameterDN65
Rate of turn, rpm1 450
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h108
Nom.pressure, Mpa1,6
Max.temperature, C120
Max. head, m34.8
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h72
Nom.head, m30.2
Impeller diameter, mm322
Serial number of the pumpBS4
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationice water, heating, drying, cooling tower, the drying chamber, glaze, water, increasing pressure, water recycling, circulation
Weight, kg119
Height of transport volume, cbm0,202
Show all features (30)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1,136.71 (netto)
Добавить в сравнение
We deliver anywhere in the world
The pumping part of the BS4 series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, watering, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
Category: Centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour108
Feed height, m34.8
Power capacity, kW11
Materialcast iron
Input pipe diameterDN80
Output pipe diameterDN65
Rate of turn, rpm1 450
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h108
Nom.pressure, Mpa1,6
Max.temperature, C120
Max. head, m34.8
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h72
Nom.head, m30.2
Impeller diameter, mm322
Serial number of the pumpBS4
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationice water, heating, drying, cooling tower, the drying chamber, glaze, water, increasing pressure, water recycling, circulation
Weight, kg119
Height of transport volume, cbm0,202
