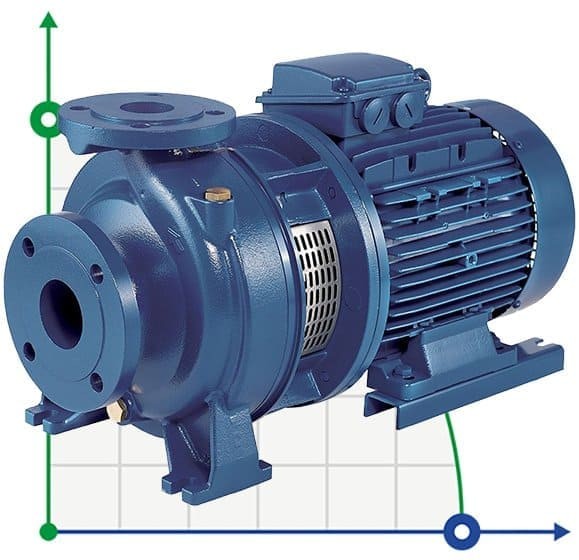

Monobloc centrifugal pump 3DS/I 50-125/2,2
Click image for a larger view
Monobloc centrifugal pump 3DS/I 50-125/2,2
Monobloc centrifugal pump 3DS/I 50-125/2,2
Monobloc centrifugal pump 3DS/I 50-125/2,2
Monobloc centrifugal pump 3DS/I 50-125/2,2

Monobloc centrifugal pump 3DS/I 50-125/2,2

Code: 2562100004I
(0 review)
ProducerEbara
Pump capacity, cu.m/hour60
Feed height, m19.5
Power capacity, kW2,2
Materialcast iron
Input pipe diameterDN 65
Output pipe diameterDN 50
Rate of turn, rpm3 000
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h60
Max.temperature, C110
Max. head, m19.5
SealMechanical Seal
Shaft materialAISI 304 stainless steel
Impeller materialAISI 304 stainless steel
Housing materialСast iron
Serial number of the pump3DS
Country of OriginItaly
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Weight, kg37,9
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1,114.94 (netto)
Добавить в сравнение
We deliver anywhere in the world
The 3DS series are EBARA standardized pumps manufactured in accordance with EN733, with a cast iron casing and an AISI 304 stainless steel impeller. The 3DS series pumps are versatile devices that can be used and offer significant advantages in terms of reliability, efficiency and cost savings . Applications: intended for pumping running water, for residential, commercial, agricultural and industrial applications, for increasing pressure, for heating and air conditioning systems. It can also be used to irrigate fields, sports grounds and in washing plants.
Categories: Centrifugal pumpPump for water supplyWater pumpPump for heating systems
ProducerEbara
Pump capacity, cu.m/hour60
Feed height, m19.5
Power capacity, kW2,2
Materialcast iron
Input pipe diameterDN 65
Output pipe diameterDN 50
Rate of turn, rpm3 000
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h60
Max.temperature, C110
Max. head, m19.5
SealMechanical Seal
Shaft materialAISI 304 stainless steel
Impeller materialAISI 304 stainless steel
Housing materialСast iron
Serial number of the pump3DS
Country of OriginItaly
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Weight, kg37,9
