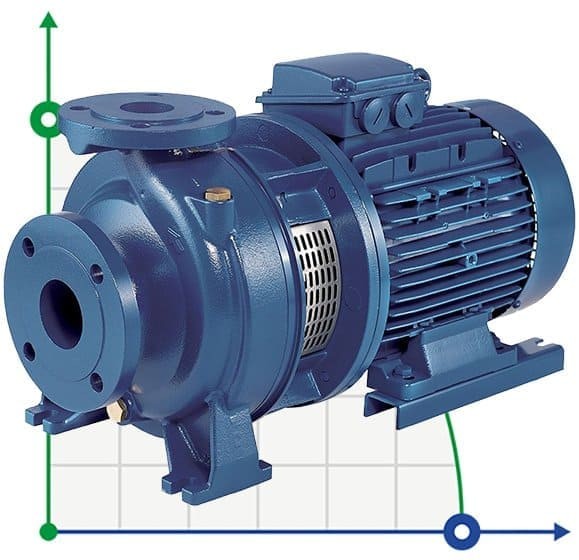

Producer | Ebara |
Pump capacity, cu.m/hour | 138 |
Feed height, m | 40.5 |
Power capacity, kW | 11 |
Material | cast iron |
Input pipe diameter | DN 80 |
Output pipe diameter | DN 65 |
Rate of turn, rpm | 3 000 |
Protection | IP55 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Max.flow rate, m3/h | 138 |
Max.temperature, C | 110 |
Max. head, m | 40.5 |
Seal | Mechanical Seal |
Shaft material | AISI 304 stainless steel |
Impeller material | AISI 304 stainless steel |
Housing material | Сast iron |
Serial number of the pump | 3DS |
Country of Origin | Italy |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Weight, kg | 106,8 |
