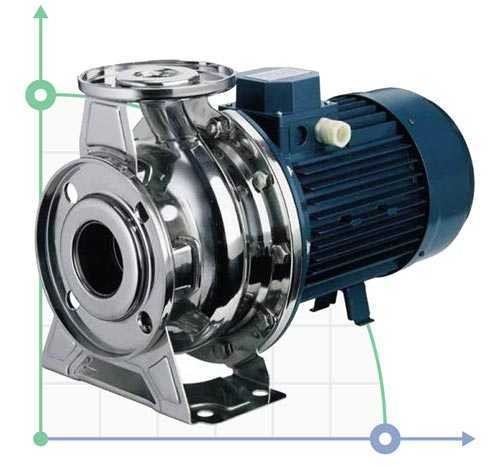

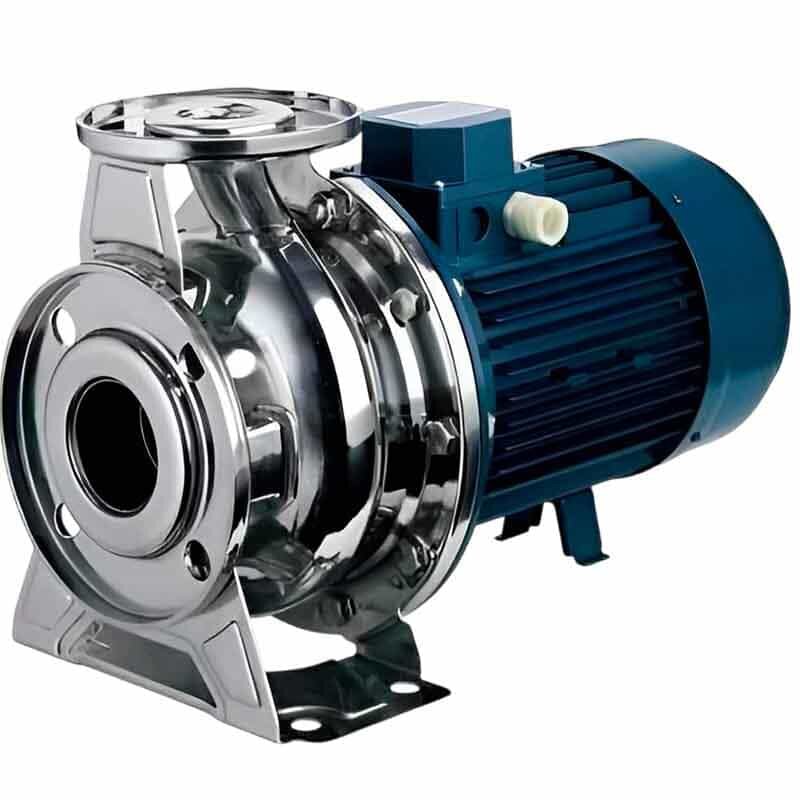

Pump Ebara 3M 32-200 / 3.0, 380V for irrigation

Ebara centrifugal pumps with flanges in accordance with EN 733 are made of Aisi 304 (Aisi 316) stainless steel. Application: water supply systems; pumping of moderately aggressive liquids; filtration; water treatment; industrial sinks; pressure boosting; heating and air conditioning; cooling and refrigeration systems; irrigation. Technical features: robust hydraulic construction. Suitable for pumping many liquids (version made of AISI 304 or AISI 316). Thanks to a special spiral chamber, the efficiency of the pump increases. Pump bed according to the standard with AISI 304. The pump body is fixed with Aisi 304 screws. Compact size. Wide range of pumps equipped with 2 and 4 pole motors. Made according to the ISO EN 733 standard. The "rear cover separation" design allows you to separate the engine/impeller assembly, leaving the housing in place. Standard mechanical seal DIN 24960. IEC standard engine (3S-3p). Special Motors: explosion-proof, high-efficiency EFF 1, low noise, with integrated VMA inverter. A custom mechanical seal is installed to meet your needs. Specification: capacity up to 132 m3/h. Feed height up to 72 M. Maximum pressure: 1 MPA. Temperature of the pumped liquid: -10 ° C ÷ 100°C. according to the standard, -10°C ÷ 110°C for version H. Pump housing, housing cover, impeller and shaft made of Aisi 304 stainless steel (Series 3), with AISI 316L (series 3L). Graphite/ceramic/NBR mechanical seal for Standard Version (3 Series), SiC/sic/FPM (3L series), graphite/ceramic/FPM mechanical seal for H version, sic/sic/FPM mechanical seal for HS version, sic/graphite/FPM mechanical seal for e version. Technical data: asynchronous 2-and 4-pole motor. Insulation Class F . Degree of protection IP55. Single-phase 220V, 50 Hz, three-phase 380V, 50 Hz. Protection against thermal overload must be provided by the consumer.
