Producer | EMSE |
Power capacity, kW | 11 |
Material | cast iron |
Input pipe diameter | DN65 |
Output pipe diameter | DN40 |
Rate of turn, rpm | 2 900 |
Explosion protection | No |
Max.flow rate, m3/h | 50 |
Max.temperature, C | 320 |
Max. head, m | 52 |
Impeller diameter, mm | 184 |
Serial number of the pump | EKY |
Country of Origin | Turkey |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Application | thermal oil, superheated water |
Analogue for | KSB, Allweiler, SIHI, FLOWSERVE, Wilo, Pompetravaini TCD, ERDURO BTKF-K |
Weight, kg | 35 |
Producer | EMSE |
Power capacity, kW | 11 |
Material | cast iron |
Input pipe diameter | DN65 |
Output pipe diameter | DN40 |
Rate of turn, rpm | 2 900 |
Explosion protection | No |
Max.flow rate, m3/h | 50 |
Max.temperature, C | 320 |
Max. head, m | 52 |
Impeller diameter, mm | 184 |
Serial number of the pump | EKY |
Country of Origin | Turkey |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Application | thermal oil, superheated water |
Analogue for | KSB, Allweiler, SIHI, FLOWSERVE, Wilo, Pompetravaini TCD, ERDURO BTKF-K |
Weight, kg | 35 |

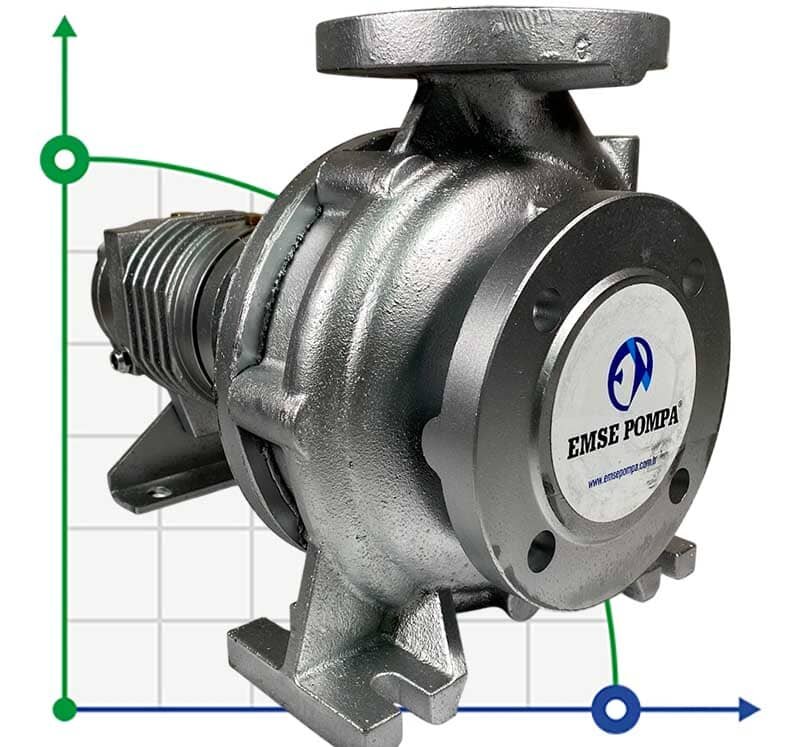

Download instructions, catalog for Thermal oil pump EMSE EKY 40-160, 11 kW, 2900, without engine
