Producer | EMSE |
Power capacity, kW | 11 |
Material | cast iron |
Input pipe diameter | DN100 |
Output pipe diameter | DN80 |
Rate of turn, rpm | 2 900 |
Explosion protection | No |
Max.flow rate, m3/h | 120 |
Max.temperature, C | 320 |
Max. head, m | 33 |
Impeller diameter, mm | 152 |
Serial number of the pump | EKY |
Country of Origin | Turkey |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Application | thermal oil, superheated water |
Analogue for | Pompetravaini TCD, KSB, Allweiler, SIHI, FLOWSERVE, Wilo, ERDURO BTKF-K |
Weight, kg | 47 |
Producer | EMSE |
Power capacity, kW | 11 |
Material | cast iron |
Input pipe diameter | DN100 |
Output pipe diameter | DN80 |
Rate of turn, rpm | 2 900 |
Explosion protection | No |
Max.flow rate, m3/h | 120 |
Max.temperature, C | 320 |
Max. head, m | 33 |
Impeller diameter, mm | 152 |
Serial number of the pump | EKY |
Country of Origin | Turkey |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Application | thermal oil, superheated water |
Analogue for | Pompetravaini TCD, KSB, Allweiler, SIHI, FLOWSERVE, Wilo, ERDURO BTKF-K |
Weight, kg | 47 |

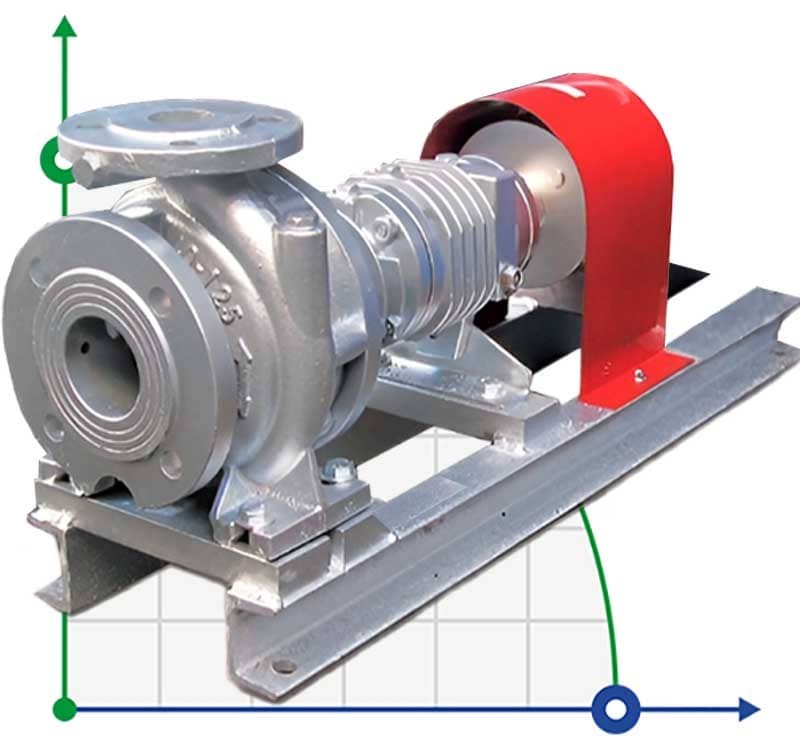

Download instructions, catalog for Hot oil pump EMSE EKY 80-160, 11 kW, 2900 with frame coupling, without motor
