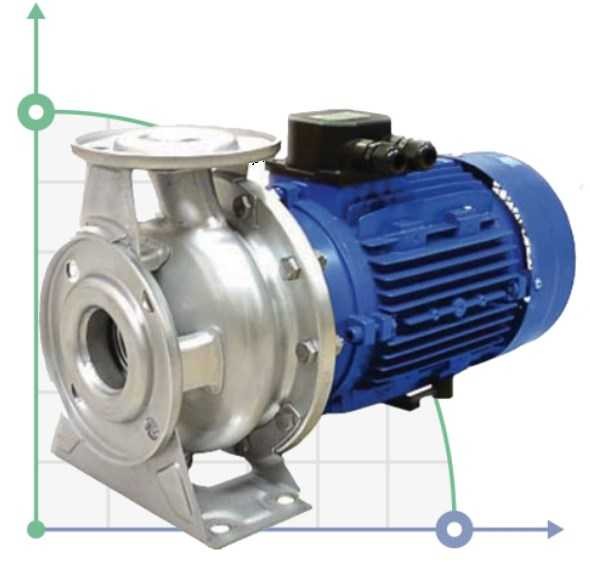

Pump GZA 50-32-200/5,5

Click image for a larger view

Code: 1004030

(0 review)

Producer	BTS Engineering
Pump capacity, cu.m/hour	24
Feed height, m	50
Power capacity, kW	5,5
Material	AISI 304 stainless steel
Input pipe diameter	DN50
Output pipe diameter	DN32
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	24
Nom.pressure, Mpa	1
Max.temperature, C	120
Material of flow channel	AISI 304 stainless steel
Max. head, m	50
Serial number of the pump	SM
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Availability of spare parts	yes
Warranty, months	12
Application	salt, CIP-washing, food, water recycling, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, heating, caustic, wine, CAS, milk, wort, ammonia mixture, juices, liquid fertilizer, cheesecloth, urea, brew, mudflow solution, brogue
Analogue for	Pentax, Onga, Omnigena, Odwerk, Nocchi, LOWARA, Kripsol, Simaco, SAER, PERKINS, PentairSwimmey, Hydro-Vacuum, Packo, TEREX, TAJFUN, Svanehoj, Sprut, Speroni, SOMA, Greenpumps, OMAC, Zenit, Honda, HYPRO, ThuneEureka, DPPumps, AlfaLaval, Calpeda, Bronzoni, ASTA, Aquatechnika, Aquario, APV, Ebara, Alweller, Varna, Johnson, DAB, Cornell, Hobart, Hilge, Hidrostal, FRISTAM, Foras, Flygt, KOLMEKS, Kenle, Unitech, KSB, Sterling, INOXPA, Grundfos, Allweiler, SIHI, Wilo, GEA, Rovatti, CAPRARI, Varisco

Show all features (23)

Documentation

Description Pump GZA 50-32-200/5,5

The GZA stainless steel centrifugal pump is designed for pumping: food products, milk, sugar syrups, wort, Braga, wine, wine materials, whey, suspensions. It is used in water supply for water supply in pressure boosting stations, chemicals, chemically active products, caustic salt (salt solutions), butter, milk, pure water, urea-ammonia fertilizers, acids, CAS pumping, ammonia water, liquid fertilizers and water. The pump body, as well as all working elements in contact with the pumped medium, are made of high-quality stainless steel. The pump motor is asynchronous, placed horizontally. Warranty - 2 years. Warranty and post-warranty service. Official service center.

Features Pump GZA 50-32-200/5,5

Producer	BTS Engineering
Pump capacity, cu.m/hour	24
Feed height, m	50
Power capacity, kW	5,5
Material	AISI 304 stainless steel
Input pipe diameter	DN50
Output pipe diameter	DN32
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	24
Nom.pressure, Mpa	1
Max.temperature, C	120
Material of flow channel	AISI 304 stainless steel
Max. head, m	50
Serial number of the pump	SM
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Availability of spare parts	yes
Warranty, months	12
Application	salt, CIP-washing, food, water recycling, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, heating, caustic, wine, CAS, milk, wort, ammonia mixture, juices, liquid fertilizer, cheesecloth, urea, brew, mudflow solution, brogue
Analogue for	Pentax, Onga, Omnigena, Odwerk, Nocchi, LOWARA, Kripsol, Simaco, SAER, PERKINS, PentairSwimmey, Hydro-Vacuum, Packo, TEREX, TAJFUN, Svanehoj, Sprut, Speroni, SOMA, Greenpumps, OMAC, Zenit, Honda, HYPRO, ThuneEureka, DPPumps, AlfaLaval, Calpeda, Bronzoni, ASTA, Aquatechnika, Aquario, APV, Ebara, Alweller, Varna, Johnson, DAB, Cornell, Hobart, Hilge, Hidrostal, FRISTAM, Foras, Flygt, KOLMEKS, Kenle, Unitech, KSB, Sterling, INOXPA, Grundfos, Allweiler, SIHI, Wilo, GEA, Rovatti, CAPRARI, Varisco
