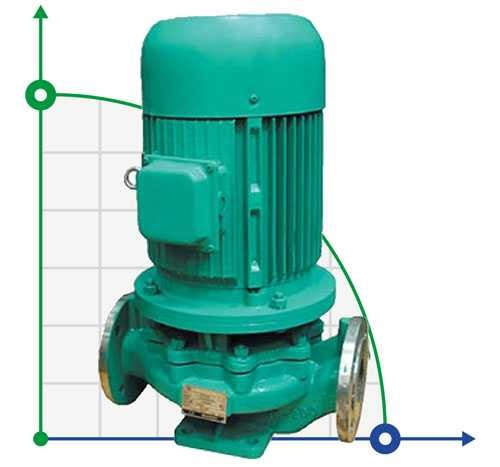

IHG 65-160 Centrifugal pump
Click image for a larger view
IHG 65-160 Centrifugal pump
IHG 65-160 Centrifugal pump
IHG 65-160 Centrifugal pump

IHG 65-160 Centrifugal pump

Code: 1000957
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour36
Feed height, m38
Power capacity, kW4
MaterialAISI 201
Input pipe diameterDN65
Output pipe diameterDN65
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h36
Nom.pressure, Mpa1,6
Max.temperature, C120
Material of flow channelAISI 201
Max. head, m38
Serial number of the pumpIHG
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Availability of spare partsyes
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg75
Show all features (23)
Documentation
Ukraine: In stock
Poland: Pre-order only
Germany: Pre-order only
$2,061.51 (netto)
Добавить в сравнение
We deliver anywhere in the world
IHG Series dry motor pumps are vertical in-line single stage centrifugal chemical pumps designed for pumping of media in oil, chemical, metal, electric power, paper as well as healthcare industries. Temperature of the inlet media ranges from -20 оС to +120 оС in standard design. Main pump body details and impeller are made of high quality stainless steel resistant to aggressive media. IHG Series pumps are available in ATEX design
Categories: Centrifugal pumpPump for CIP-washing of the distillation columnPump for aggressive liquidPump for water supplyCaustic pumpPump for heating systemsWood Drying PumpPump for kneading tanks
ProducerBTS Engineering
Pump capacity, cu.m/hour36
Feed height, m38
Power capacity, kW4
MaterialAISI 201
Input pipe diameterDN65
Output pipe diameterDN65
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h36
Nom.pressure, Mpa1,6
Max.temperature, C120
Material of flow channelAISI 201
Max. head, m38
Serial number of the pumpIHG
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Availability of spare partsyes
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg75
