Producer | EMSE |
Pump capacity, cu.m/hour | 400 |
Feed height, m | 20 |
Power capacity, kW | 37 |
Material | cast iron |
Input pipe diameter | DN250 |
Output pipe diameter | DN200 |
Rate of turn, rpm | 1 500 |
Explosion protection | No |
Max.temperature, C | 110 |
Seal | Mechanical Seal |
Shaft material | AISI 420 |
Impeller material | AISI 316 stainless steel |
Housing material | Сast iron |
Serial number of the pump | ENP |
Country of Origin | Turkey |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | without engine |
Warranty, months | 12 |
Producer | EMSE |
Pump capacity, cu.m/hour | 400 |
Feed height, m | 20 |
Power capacity, kW | 37 |
Material | cast iron |
Input pipe diameter | DN250 |
Output pipe diameter | DN200 |
Rate of turn, rpm | 1 500 |
Explosion protection | No |
Max.temperature, C | 110 |
Seal | Mechanical Seal |
Shaft material | AISI 420 |
Impeller material | AISI 316 stainless steel |
Housing material | Сast iron |
Serial number of the pump | ENP |
Country of Origin | Turkey |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | without engine |
Warranty, months | 12 |

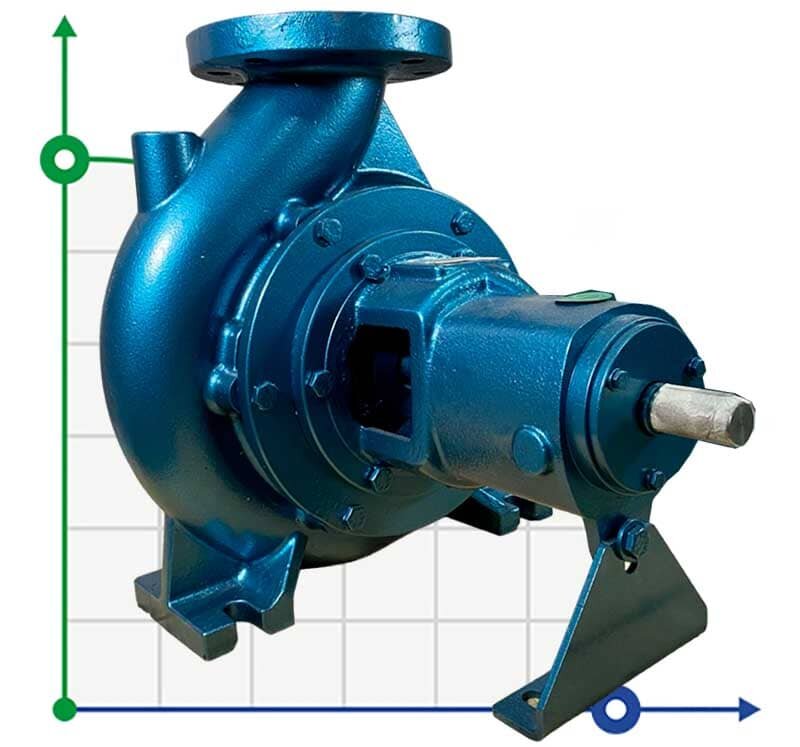

Download instructions, catalog for Single-stage cantilever pump ENP 200-315, 400/20, 37 kW, 1500 rpm without motor, impeller in AISI 316
