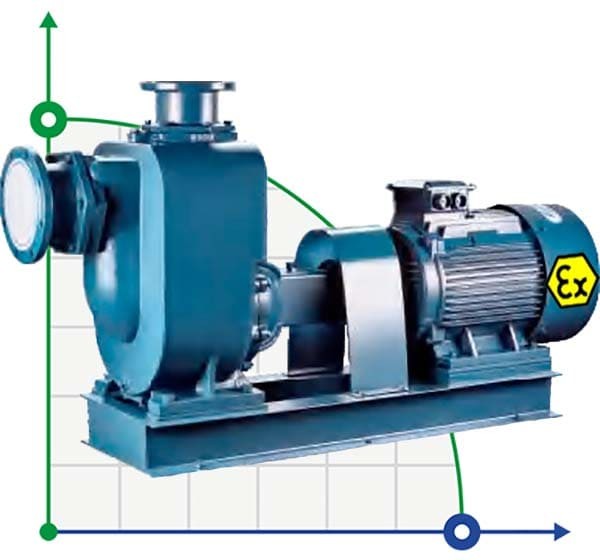

Self-priming cantilever pump BZWB 100-100-30/2, 22kW, 2900, Ex, imp: AISI 304

Code: 1038425
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour100
Feed height, m30
Power capacity, kW22
Materialcast iron
Input pipe diameter100
Output pipe diameter100
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.temperature, C80
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h100
Nom.head, m30
Dimensions, mm860х450х820
Serial number of the pumpBZWB
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationdiesel, gasoline pumping, diesel pumping, petroleum products
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$4,069.04 (netto)
Добавить в сравнение
We deliver anywhere in the world
Self-priming explosion-proof pump BZWB. Impeller with two blades, closed type, with wide channels for clean and dirty liquids with the presence of impurities. The pump part is connected to the motor through a coupling, which guarantees rapid restoration of the pump's operability in case of electric emergencies. AISI304 stainless steel pump part versions, available for all models. High electrical and hydraulic efficiency. High self - priming rate without the use of a check valve (4.5-6.0 m of water).St). The possibility of self-sealing is realized due to the presence of a pre-fill chamber in the pump housing. The pumps of this model are suitable for chemical, petroleum, pharmaceutical, mining, paper, fiber, cellulose, textile, food, power plants and urban sewage structures, sewage systems of public facilities, and other industries. These pumps are particularly effective for pumping gasoline and diesel fuel, bioethanol. High productivity guarantees fast and reliable loading / unloading of railway and automobile tanks, stationary storage facilities, and tank farms.
ProducerBTS Engineering
Pump capacity, cu.m/hour100
Feed height, m30
Power capacity, kW22
Materialcast iron
Input pipe diameter100
Output pipe diameter100
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.temperature, C80
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h100
Nom.head, m30
Dimensions, mm860х450х820
Serial number of the pumpBZWB
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationdiesel, gasoline pumping, diesel pumping, petroleum products
