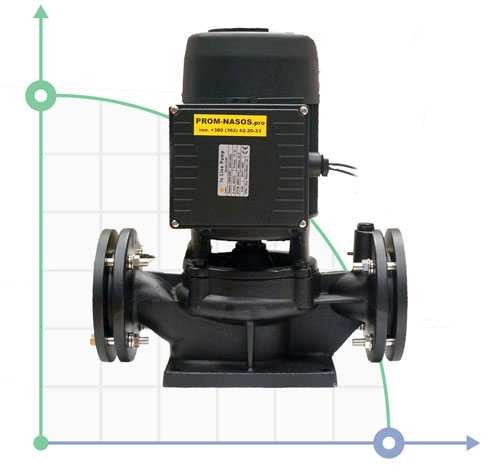

JL 65T Centrifugal pump

Code: 1004495
(0 review)
ProducerBTS Engineering
Pump capacity, m3/h37
Feed height, m21
Power capacity, kW2,2
Materialcast iron
Input pipe diameterDN65
Output pipe diameterDN65
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h37
Nom.pressure, Mpa1,6
Max.temperature, C120
Material of flow channelcast iron
Max. head, m21
Net weight,kg39
Serial number of the pumpJL
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Availability of spare partsYes
Warranty, months12
Applicationwater, heating, DHW, drying, glycol, air conditioning systems, cooling, cooling tower, hot water, ice water, the drying chamber, water supply, coolant, hot water, glaze, boiler, circulation, ethylene glycol, water recycling, increasing pressure, water
Analogue forKSB Etaline-R, CALPEDA NC, CALPEDA NR, CALPEDA NM, KSB Calio S, KSB Etanorm, KSB Calio, KSB Etaline, DAB ALM, DAB ALP, DAB KLM, DAB KLP, AB DKLM, DAB DKLP, DAB CM, DAB CM-G, DAB DCM, DAB DCM-G, DAB CP, PSPRUT 3VP, SPRUT 1V, SPRUT 3VP, SPRUT GPD, Speroni SCR, WILO TOP-S, WILO CronoLine-IL-E, WILO VeroLine-IPL, EBARA LPS, EBARA EGO EASY, Grundfos UPS, DAB DCP-G, DAB DCP, DAB CP-G
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$610 (netto)
Добавить в сравнение
We deliver anywhere in the world
Flange-type centrifugal pumps are applied in sealed and open vented heating systems with forced coolant circulation. Medium doesn’t come in contact with the pump motor in comparison to the pumps with wet rotor. Inlet and discharge pipes of JL centrifugal pumps are parallel to each other with the similar nominal bores. The JL pumps are equipped with standard flange-type electric air-cooled motors.
ProducerBTS Engineering
Pump capacity, m3/h37
Feed height, m21
Power capacity, kW2,2
Materialcast iron
Input pipe diameterDN65
Output pipe diameterDN65
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h37
Nom.pressure, Mpa1,6
Max.temperature, C120
Material of flow channelcast iron
Max. head, m21
Net weight,kg39
Serial number of the pumpJL
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Availability of spare partsYes
Warranty, months12
Applicationwater, heating, DHW, drying, glycol, air conditioning systems, cooling, cooling tower, hot water, ice water, the drying chamber, water supply, coolant, hot water, glaze, boiler, circulation, ethylene glycol, water recycling, increasing pressure, water
Analogue forKSB Etaline-R, CALPEDA NC, CALPEDA NR, CALPEDA NM, KSB Calio S, KSB Etanorm, KSB Calio, KSB Etaline, DAB ALM, DAB ALP, DAB KLM, DAB KLP, AB DKLM, DAB DKLP, DAB CM, DAB CM-G, DAB DCM, DAB DCM-G, DAB CP, PSPRUT 3VP, SPRUT 1V, SPRUT 3VP, SPRUT GPD, Speroni SCR, WILO TOP-S, WILO CronoLine-IL-E, WILO VeroLine-IPL, EBARA LPS, EBARA EGO EASY, Grundfos UPS, DAB DCP-G, DAB DCP, DAB CP-G

Download instructions, catalog for JL 65T Centrifugal pump
