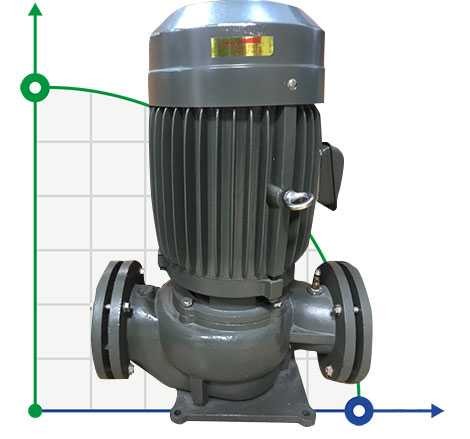

JL 80 pump for heating system

Code: 1008563
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour70
Feed height, m20
Power capacity, kW3,7
Materialcast iron
Input pipe diameterDN80
Output pipe diameterDN80
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h70
Nom.pressure, Mpa1,6
Max.temperature, C120
Material of flow channelcast iron
Max. head, m20
Serial number of the pumpJL
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Availability of spare partsyes
Warranty, months12
Applicationthe drying chamber, heating, DHW, drying, glycol, air conditioning systems, cooling, cooling tower, hot water, ice water, water, hot water, coolant, boiler, water supply, circulation, ethylene glycol, water recycling, increasing pressure, water, glaze
Analogue forKSB Etanorm, KSB Etaline-R, CALPEDA NC, CALPEDA NR, CALPEDA NM, KSB Calio S, KSB Calio, KSB Etaline, PSPRUT 3VP, DAB ALM, DAB ALP, DAB KLM, DAB KLP, AB DKLM, DAB DKLP, DAB CM, DAB CM-G, DAB DCM, DAB DCM-G, DAB CP, SPRUT 1V, SPRUT 3VP, SPRUT GPD, Speroni SCR, WILO TOP-S, WILO CronoLine-IL-E, WILO VeroLine-IPL, EBARA LPS, EBARA EGO EASY, Grundfos UPS, DAB DCP-G, DAB DCP, DAB CP-G
Show all features (22)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$845.38 (netto)
Добавить в сравнение
We deliver anywhere in the world
Flange-type centrifugal pumps are applied in sealed and open vented heating systems with forced coolant circulation. Medium doesn’t come in contact with the pump motor in comparison to the pumps with wet rotor. Inlet and discharge pipes of JL centrifugal pumps are parallel to each other with the similar nominal bores. The JL pumps are equipped with standard flange-type electric air-cooled motors.
ProducerBTS Engineering
Pump capacity, cu.m/hour70
Feed height, m20
Power capacity, kW3,7
Materialcast iron
Input pipe diameterDN80
Output pipe diameterDN80
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h70
Nom.pressure, Mpa1,6
Max.temperature, C120
Material of flow channelcast iron
Max. head, m20
Serial number of the pumpJL
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Availability of spare partsyes
Warranty, months12
Applicationthe drying chamber, heating, DHW, drying, glycol, air conditioning systems, cooling, cooling tower, hot water, ice water, water, hot water, coolant, boiler, water supply, circulation, ethylene glycol, water recycling, increasing pressure, water, glaze
Analogue forKSB Etanorm, KSB Etaline-R, CALPEDA NC, CALPEDA NR, CALPEDA NM, KSB Calio S, KSB Calio, KSB Etaline, PSPRUT 3VP, DAB ALM, DAB ALP, DAB KLM, DAB KLP, AB DKLM, DAB DKLP, DAB CM, DAB CM-G, DAB DCM, DAB DCM-G, DAB CP, SPRUT 1V, SPRUT 3VP, SPRUT GPD, Speroni SCR, WILO TOP-S, WILO CronoLine-IL-E, WILO VeroLine-IPL, EBARA LPS, EBARA EGO EASY, Grundfos UPS, DAB DCP-G, DAB DCP, DAB CP-G

Download instructions, catalog for JL 80 pump for heating system
