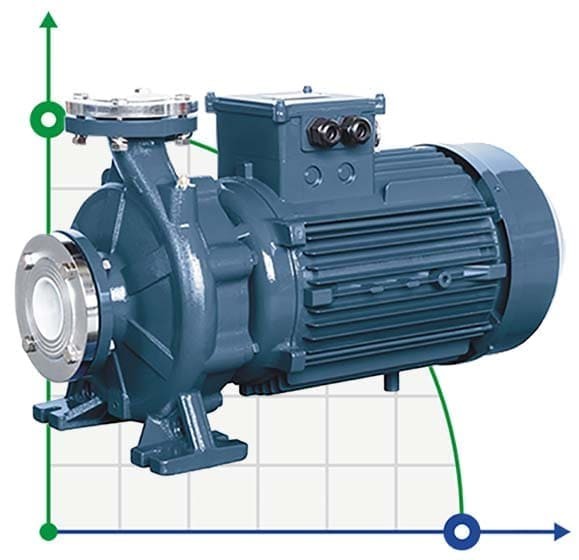

Pump for antifreeze BST4 100-200/4, 1500
Click image for a larger view
Pump for antifreeze BST4 100-200/4, 1500
Pump for antifreeze BST4 100-200/4, 1500
Pump for antifreeze BST4 100-200/4, 1500
Pump for antifreeze BST4 100-200/4, 1500

Pump for antifreeze BST4 100-200/4, 1500

Code: 1037376
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour84
Feed height, m10.5
Power capacity, kW4
Materialcast iron
Input pipe diameter125
Output pipe diameter100
Rate of turn, rpm1 500
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h84
Nom.head, m10.5
Housing materialСast iron
Serial number of the pumpBST4
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationantifreeze, coolant, detergents, process fluids, heating systems, non-corrosive liquids, glycerol, tosol, brake fluids, water, increasing pressure
Analogue forEbara 3D, Speroni CFM, Speroni MEM, Speroni CS, Pedrollo HF, CALPEDA NM
Weight, kg89
Length of transport packing, cm67
Width of transport packing, cm45
Height of transport packing, cm64
Height of transport volume, cbm0,193
Show all features (31)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1,554.92 (netto)
Добавить в сравнение
We deliver anywhere in the world
The BST4 series monoblock pump is designed for heating, water supply , pressure boosting systems, non-aggressive liquids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, cooling fluids, drilling fluids, mixtures of liquids, solvents. Analogs: Calpeda NM, Pedrollo H/HF, Ebara 3D. Speroni CFM/mem/CS The pump is used to work with both non-aggressive liquids that are not chemically aggressive towards the pump body. The impeller is made of cast iron.
Categories: Centrifugal pumpPump for water supplyWater pumpPump for heating systems
ProducerBTS Engineering
Pump capacity, cu.m/hour84
Feed height, m10.5
Power capacity, kW4
Materialcast iron
Input pipe diameter125
Output pipe diameter100
Rate of turn, rpm1 500
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h84
Nom.head, m10.5
Housing materialСast iron
Serial number of the pumpBST4
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationantifreeze, coolant, detergents, process fluids, heating systems, non-corrosive liquids, glycerol, tosol, brake fluids, water, increasing pressure
Analogue forEbara 3D, Speroni CFM, Speroni MEM, Speroni CS, Pedrollo HF, CALPEDA NM
Weight, kg89
Length of transport packing, cm67
Width of transport packing, cm45
Height of transport packing, cm64
Height of transport volume, cbm0,193

Download instructions, catalog for Pump for antifreeze BST4 100-200/4, 1500
