Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)

Product list

Home
Industrial pumps
Centrifugal pump
Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)

Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)

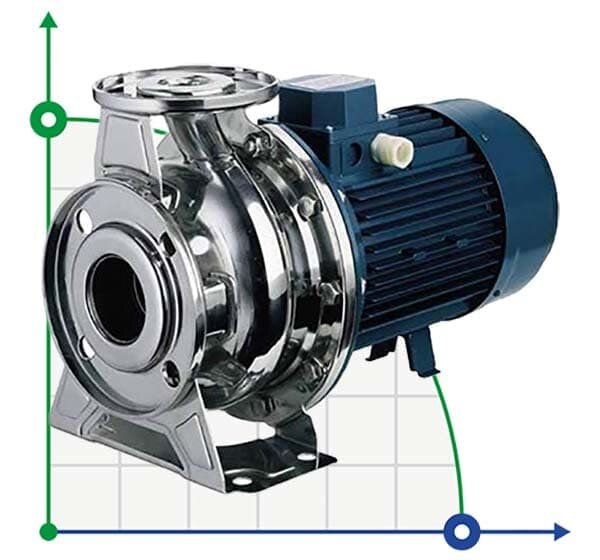

Click image for a larger view

Code: 1039395

(0 review)

Producer	ST Pompe
Pump capacity, cu.m/hour	138
Feed height, m	53.5
Power capacity, kW	18,5
Material	AISI 304 stainless steel
Input pipe diameter	DN80
Output pipe diameter	DN65
Rate of turn, rpm	3 000
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	138
Max.temperature, C	90
Max. head, m	53.5
Suction capacity (NPSH), m	7
Seal	Mechanical Seal, Ceramic/Carbon/NBR
Shaft material	AISI 304 stainless steel
Impeller material	AISI 304 stainless steel
Pressure, bar	10
Housing material	AISI 304 stainless steel
Serial number of the pump	NX
Country of Origin	Italy
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	with engine
Application	wort, brogue, mudflow solution, brew, urea, cheesecloth, liquid fertilizer, CAS, juices, ammonia mixture, milk, wine, heating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, water recycling, caustic, food, CIP-washing, salt
Analogue for	Ebara 3M, Speroni CX
Weight, kg	127,5
Length of transport packing, cm	880
Width of transport packing, cm	390
Height of transport packing, cm	532

Show all features (32)

Documentation

Description Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)

Centrifugal pumps of the NX series are used for pumping chemically clean water without solid particles in heating and cooling systems, irrigation systems, fire-fighting systems. All parts of the pump in contact with the liquid are made of stainless steel and designed in accordance with DIN 24255 (UNI EN 733). The wide range and high reliability make these pumps suitable for agricultural, civil and industrial applications. Pump housing, impeller, diffusers: stainless steel AISI 304. Motor shaft: stainless steel AISI 304. Motor housing and cover: aluminum. Mechanical seal: Cer/Car/NBR (standard).

Category: Centrifugal pump

Features Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)

Producer	ST Pompe
Pump capacity, cu.m/hour	138
Feed height, m	53.5
Power capacity, kW	18,5
Material	AISI 304 stainless steel
Input pipe diameter	DN80
Output pipe diameter	DN65
Rate of turn, rpm	3 000
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	138
Max.temperature, C	90
Max. head, m	53.5
Suction capacity (NPSH), m	7
Seal	Mechanical Seal, Ceramic/Carbon/NBR
Shaft material	AISI 304 stainless steel
Impeller material	AISI 304 stainless steel
Pressure, bar	10
Housing material	AISI 304 stainless steel
Serial number of the pump	NX
Country of Origin	Italy
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	with engine
Application	wort, brogue, mudflow solution, brew, urea, cheesecloth, liquid fertilizer, CAS, juices, ammonia mixture, milk, wine, heating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, water recycling, caustic, food, CIP-washing, salt
Analogue for	Ebara 3M, Speroni CX
Weight, kg	127,5
Length of transport packing, cm	880
Width of transport packing, cm	390
Height of transport packing, cm	532

Documentation Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)

Download instructions, catalog for Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)
